Description


Product Features
Imported Heavy-Duty Swivel Casters
The equipment is equipped with compact yet high-capacity imported heavy-duty swivel casters. The four-wheel design ensures smooth rotation, safe movement, and convenience.

High-Temperature Resistant Sealing
The door and cabinet are sealed with high-tensile, high-temperature resistant sealing strips, ensuring airtightness in the testing area, which guarantees the precision and stability of the testing process.

Advanced P.1.D Intelligent Control System
The system uses fuzzy P.1.D intelligent control and features a programmable running mode. Temperature and humidity control, as well as power output, are calculated by a microcomputer, ensuring high precision and energy-efficient performance.

Unique Airflow Structure
The device features a unique airflow structure, with an imported fan motor and a multi-wing blade design that can withstand high and low temperatures. This ensures forced convection and vertical air circulation, improving uniform temperature and humidity distribution.

Easy-to-Clean High-Quality Stainless Steel
The surface is made of high-quality antibacterial stainless steel with rounded edges, making it smooth, easy to clean, and maintain a high level of cleanliness. The large external water tank automatically replenishes the water supply, eliminating the need for frequent manual refills. Water level control uses a mechanical float valve for automatic sensing, preventing errors from electronic systems.

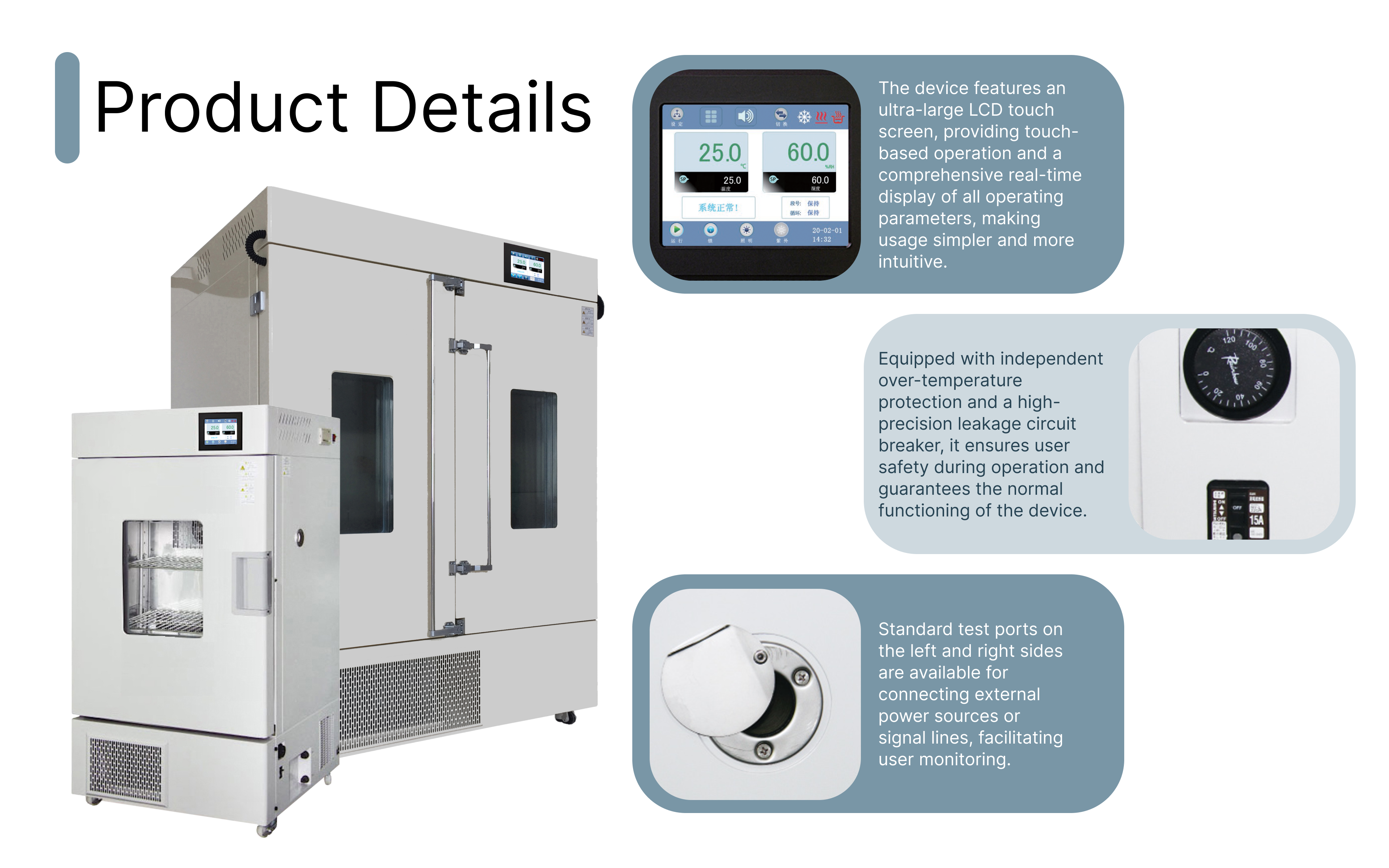

Large LCD Touchscreen and Simple Operation
The system is equipped with a large LCD touchscreen, providing full and systematic display of all operational parameters, making it easy and clear to operate. It includes external RS485 communication interfaces and USB output storage ports, allowing users to connect to an external PC for monitoring, data display, and storage (data cannot be altered). The system also enhances human-machine interaction, ensuring the integrity and traceability of the testing process and data.

Large Viewing Window and Comprehensive Safety Features
The equipment features a large, clear viewing window, allowing users to observe the internal testing area in full, even when the external door remains closed. Standard safety features include leakage protection, an independent adjustable temperature safety device, water supply protection, anti-overflow protection, compressor overpressure protection, cooling fan overheat protection, door alarm, power outage alarm, and sensor alarms to ensure absolute safety during operation.

High-Quality Components
The system is equipped with imported brand compressors, German EBM cooling fans, original Finnish VAISALA humidity sensors, and Honeywell PT1000 three-wire high-precision temperature sensors, ensuring high accuracy and reliability.

Automatic and Manual Defrost Functions
The control system provides both automatic and manual defrost options for user selection. The automatic defrost feature is recommended for long-term tests, as it effectively prevents temperature and humidity fluctuations caused by frost buildup on the evaporator during operation.
Product Introduction

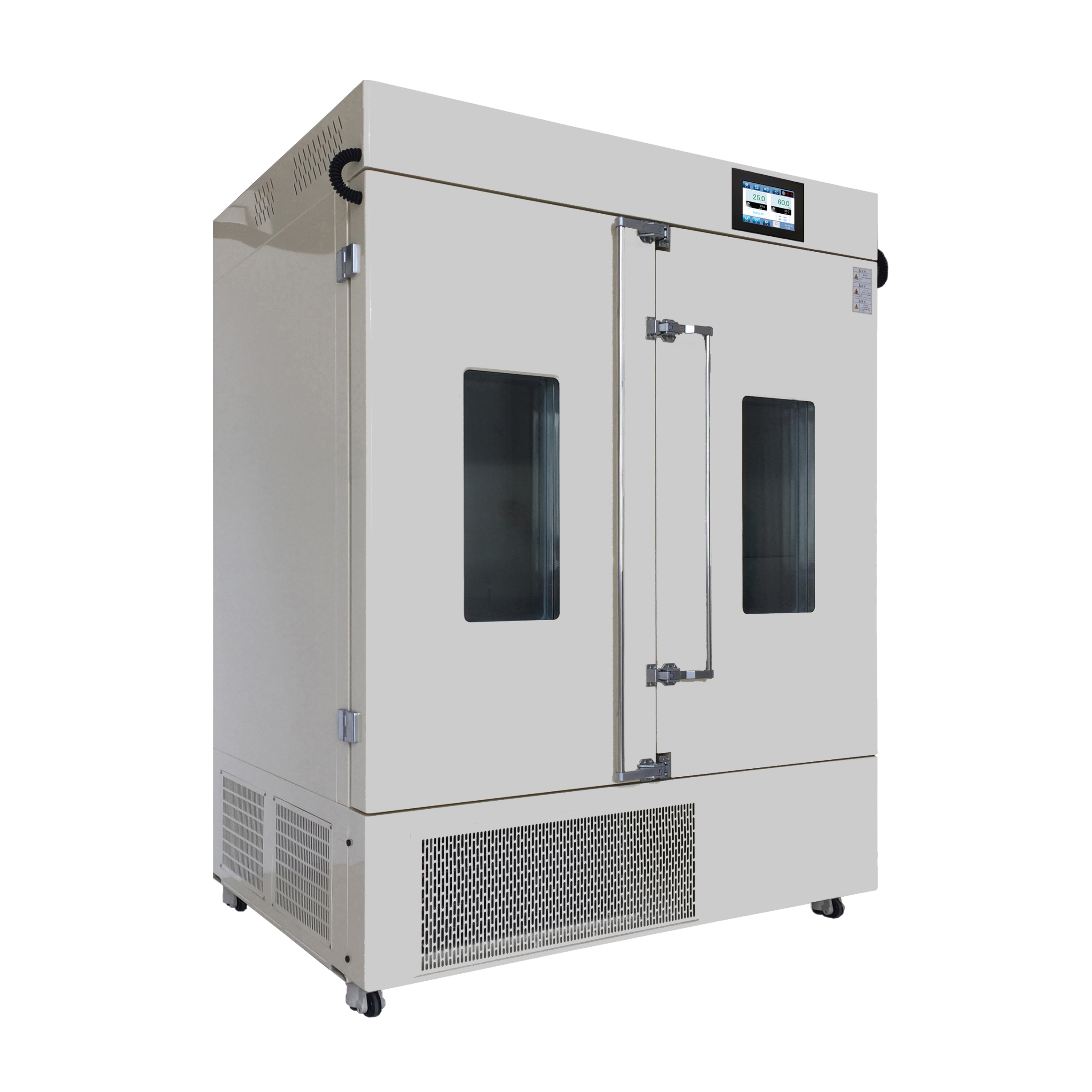

The Constant Temperature and Humidity Incubator can accurately simulate complex environmental conditions such as low temperature, high temperature, high humidity, and low temperature with low humidity. It is commonly used in laboratories for plant cultivation, breeding experiments, bacterial and microbial culture, fermentation, various constant temperature tests, environmental tests, water analysis, BOD determination, microbial material degradation experiments, and the storage of substances like culture media, serums, and pharmaceuticals. It is widely applied in research fields such as healthcare, biopharmaceuticals, agricultural research, and environmental protection.

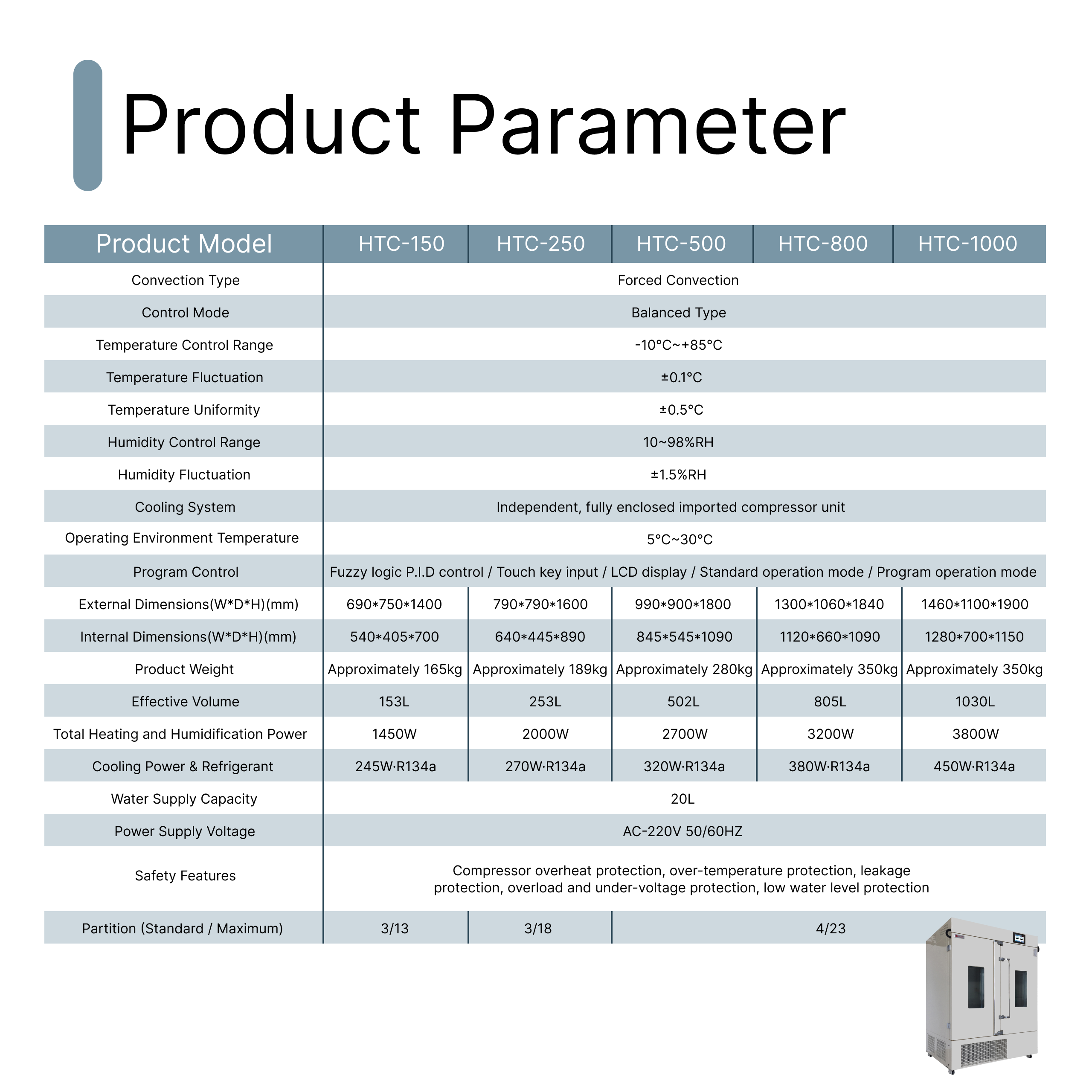

Product Model HTC-150 HTC-250 HTC-500 HTC-800 HTC-1000
Convection Type Forced Convection
Control Mode Balanced Type
Temperature Control Range -10°C~+85°C
Temperature Fluctuation ±0.1°C
Temperature Uniformity ±0.5°C
Humidity Control Range 10~98%RH
Humidity Fluctuation ±1.5%RH
Cooling System Independent, fully enclosed imported compressor unit
Operating Environment Temperature 5°C~30°C
Program Control Fuzzy logic P.1.D control / Touch key input / LCD display / Standard operation mode / Program operation mode
External Dimensions(W*D*H)(mm) 690*750*1400 790*790*1600 990*900*1800 1300*1060*1840 1460*1100*1900
Internal Dimensions(W*D* H)(mm) 540*405*700 640*445*890 845*545*1090 1120*660*1090 1280*700*1150
Product Weight Approximately 165kg Approximately 189kg Approximately 280kg Approximately 350kg Approximately 350kg
Effective Volume 153L 253L 502L 805L 1030L
Total Heating and Humidification Powe! 1450W 2000W 2700W 3200W 3800W
Cooling Power & Refrigerant 245W-R134a 270W-R134a 320W-R134a 380W-R134a 450W-R134a
Water Supply Capacity 20L
Power Supply Voltage AC-220V 50/60HZ
Safety Features Compressor overheat protection,over-temperature protection, leakageprotection, overload and under-voltage protection, low water level protection
