Description

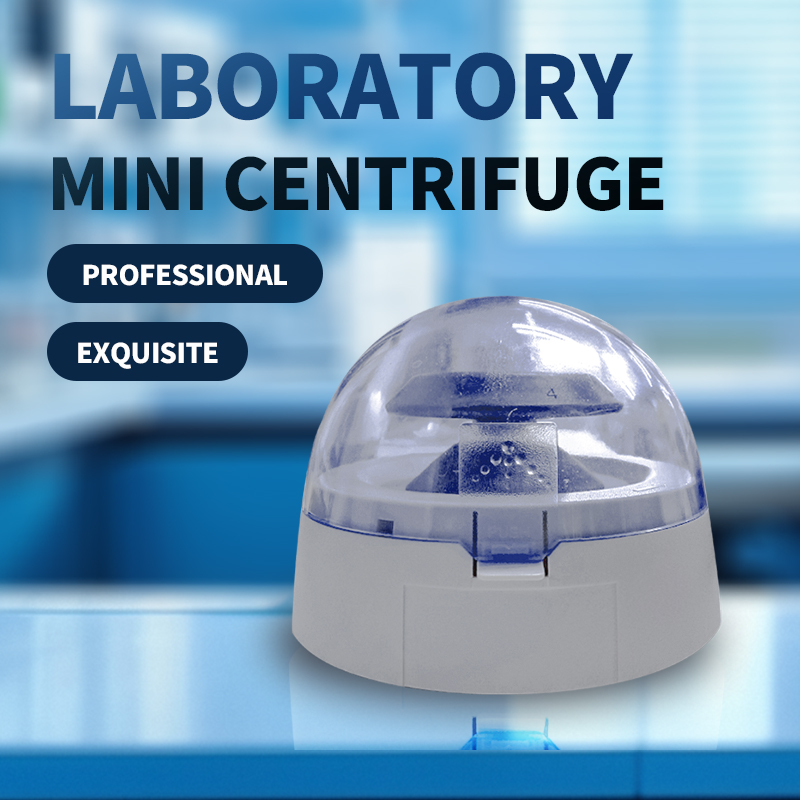

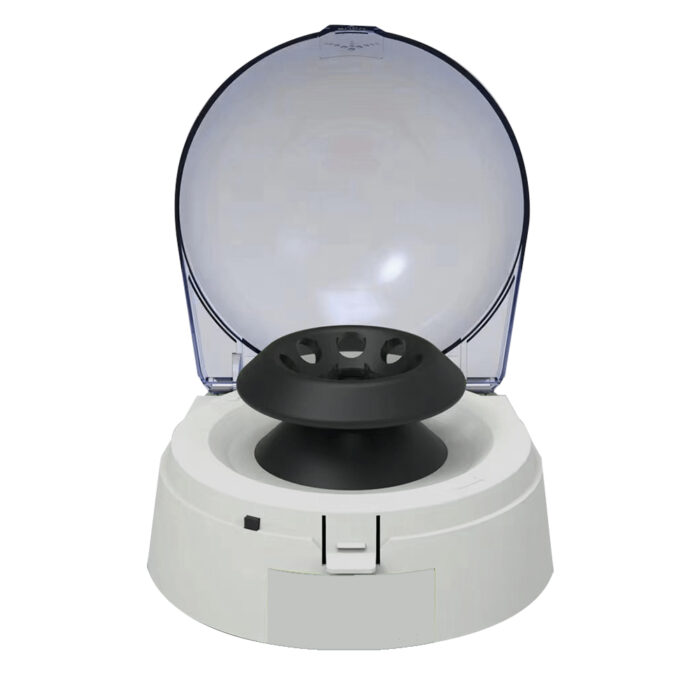

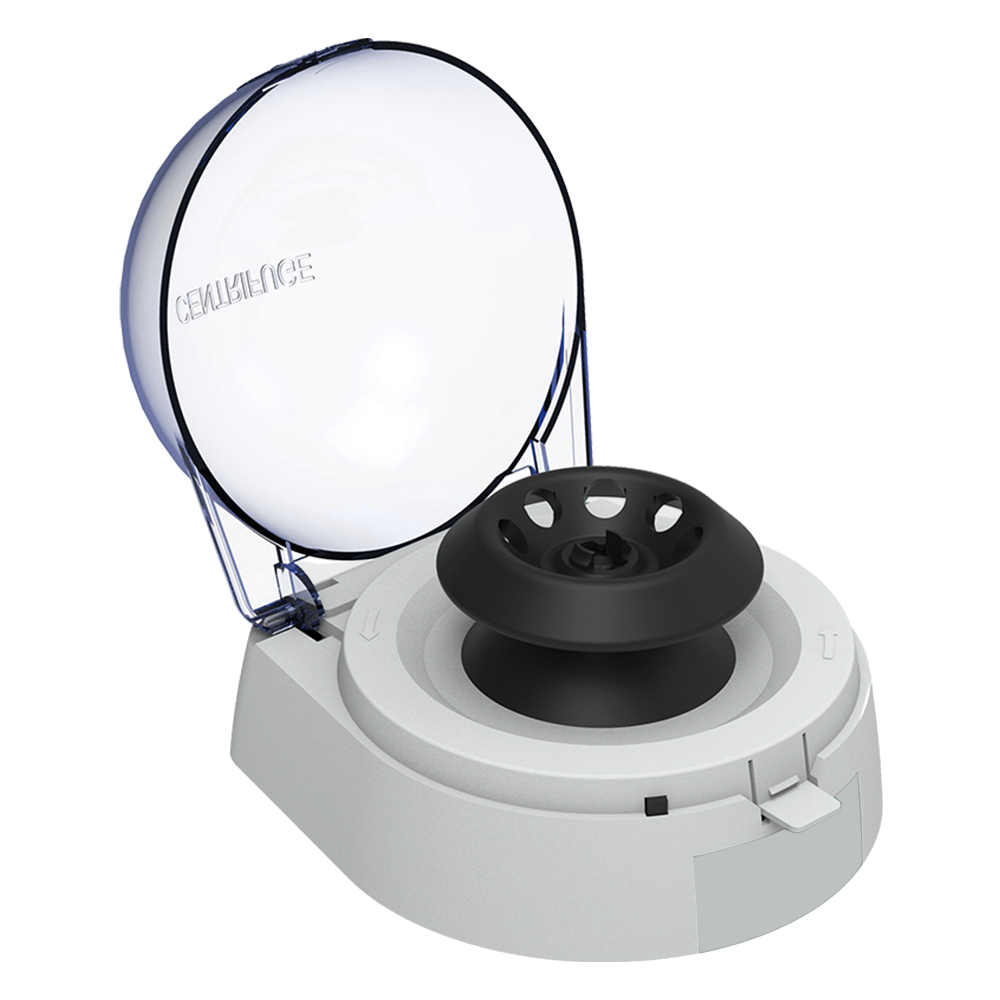

ELF6 Mini Centrifuge

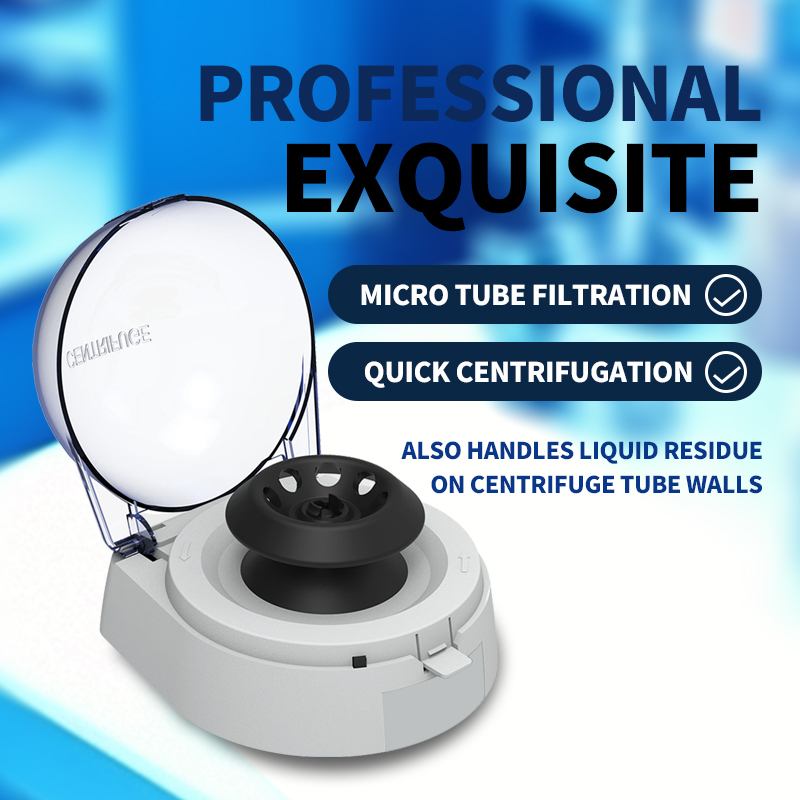

The ELF6 mini centrifuge is ideal for microtube filtering and rapid centrifugation, and it can also address the phenomenon of liquid clinging to the walls of centrifuge tubes.

Product Features:

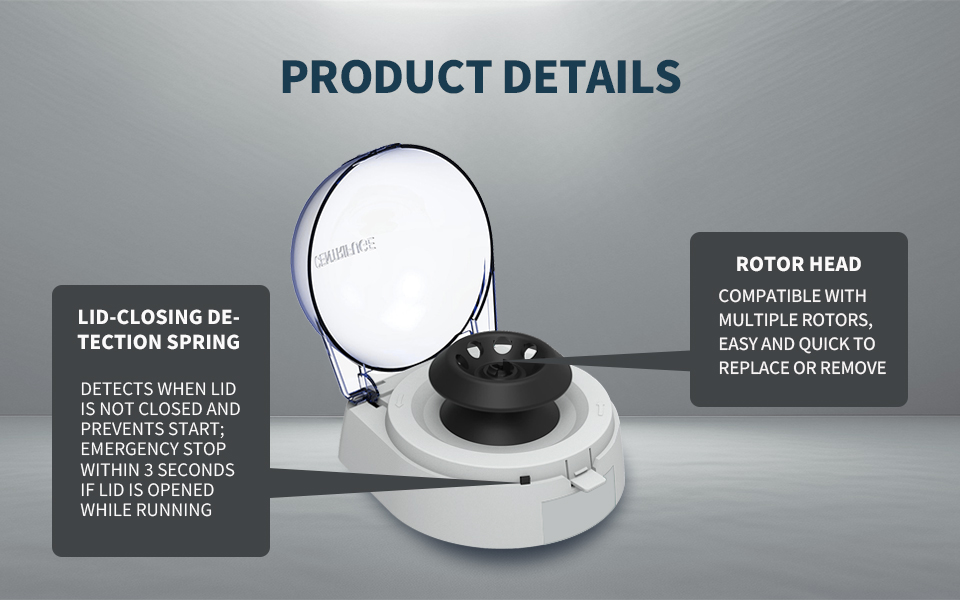

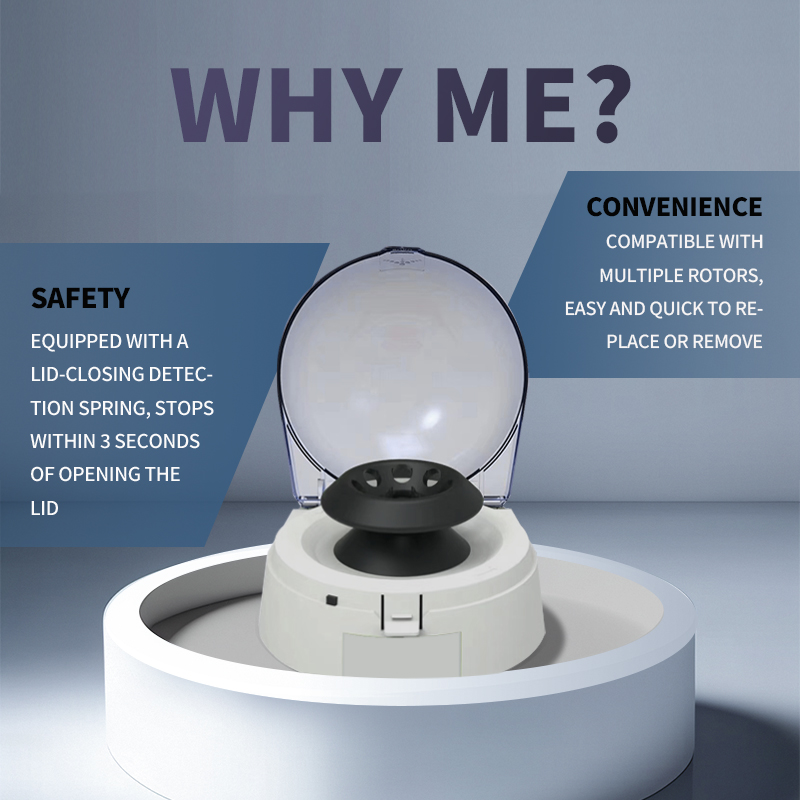

Flip cover switch function, starts when closed and stops when opened, convenient operation.
Carefully designed shock absorption mechanism, minimal vibration during operation.
Cleverly designed buckle structure for quick and easy rotor replacement or disassembly.
Compact body size with large sample capacity, capable of accommodating filter-type centrifuge tubes.

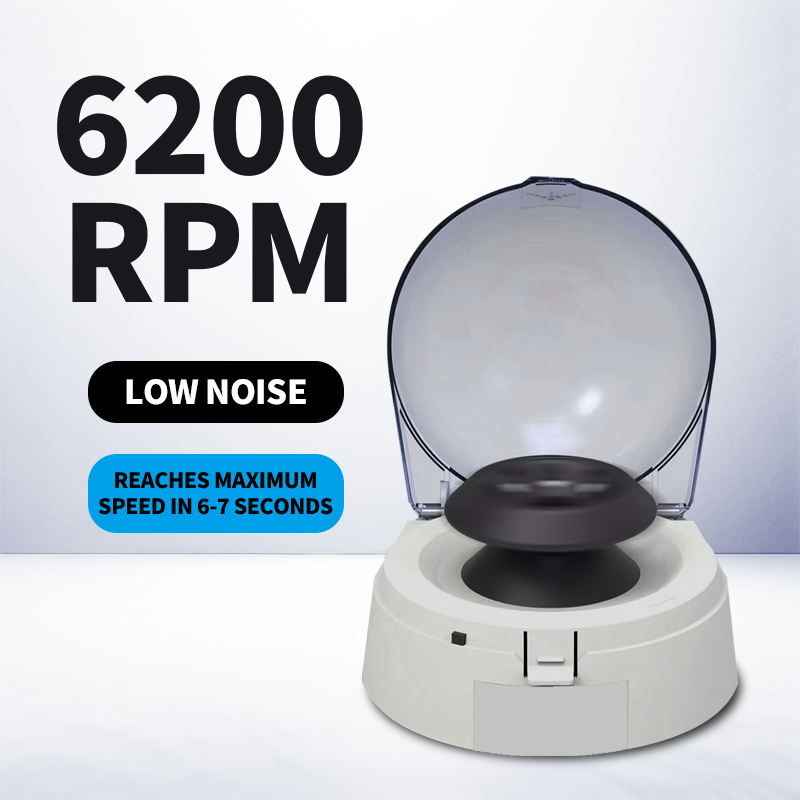

Rapid acceleration, reaching maximum speed in 6~7 seconds.
Stable and quiet operation, noise level ≤48dB.
Safe operation with 24V low-voltage operation to ensure experiment safety.
High safety coefficient: equipped with two touch switches internally, the instrument only runs when both are closed simultaneously, avoiding safety hazards caused by improper operation.
Standard Configuration
Number Name and Specification Quantity
1 Main Unit 1
2 Power Adapter 1
3 Circular Rotor, Square Rotor 1 each
4 0.2ml, 0.5ml Tube Adapters 8 each

Model ELF6
Maximum Speed 6200rpm (±5%)
Maximum Relative Centrifugal Force 2370×g
Rotor Capacity (Circular Rotor)0.2/0.5/1.5/2.0mL×8;
(Square Rotor)0.2mL×16 tubes or 0.2mL 8-strip tubes × 2 rows;
Operating Time Continuous
Compatible Accessories All
Motor Type DC motor
Acceleration Time Reach maximum speed in 6~7 seconds
Deceleration Time Within 15 seconds if not lidded, within 3 seconds if lidded.
Input Power DC24V 2.0A
Output Power 20W
Dimensions (W×D×H)157×170×120mm
Weight 0.6kg

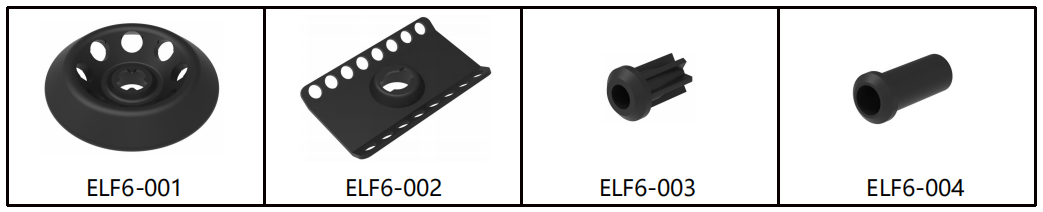

Accessory Code Description
ELF6-001 Circular Rotor
ELF6-002 Square Rotor
ELF6-003 0.2mL Tube Adapter, for use with ELF6-001 (8 pieces/pack)
ELF6-004 0.5mL Tube Adapter, for use with ELF6-001 (8 pieces/pack)

E3112 Micro High-Speed Centrifuge
This product is a digital centrifuge that allows for easy separation of different samples by adjusting the speed and centrifugation time. Whether it’s DNA/RNA extraction, serum analysis, or drug preparation, this centrifuge provides reliable operation and accurate experimental results.

·
Higher centrifugal force and speed make it applicable to various experimental scenarios.
· Easy adjustment of centrifugation time and speed, with simple and clear usage instructions.
· Robust and stable structure with safety design ensures stability and safety during high-speed operation.
· Equipped with rotors and sample tubes of different specifications to meet different sample volumes and processing requirements, capable of handling multiple samples simultaneously.
· Reliable stability ensures long-term stable operation with minimal risk of failure.
· The instrument operates stably and quietly, with noise levels ≤48dB.
· 24V low-voltage operation ensures experimental safety.

Standard Configuration
Number Name and Specification Quantity
1 Main unit 1
2 Power adapter 1
3 Round rotor, square rotor 1 each
4 0.2ml tube adapters, 0.5ml tube adapters 8 each

Technical Specifications

Parameter Description
Model E3112
Maximum Speed 12000rpm (±5%)
Maximum Relative Centrifugal Force 9660×g
Rotor Capacity (Circular Rotor) 0.2/0.5/1.5/2.0mL×8; (Square Rotor) 0.2mL×16 tubes or 0.2mL eight-strip tubes ×2 rows
Operating Time Continuous
Available Accessories All
Motor Type DC motor
Acceleration Time Reach maximum speed in 10~11 seconds
Deceleration Time 15 seconds without lid, 5 seconds with lid
Input Power DC24V 2.0A
Motor Output Power 20W
Dimensions 245×190×125mm (L×W×H)
Weight 1.8kg

Accessory Selection

Accessory Number Description
E3112-001 Rotor 1
E3112-002 Rotor 2
E3112-003 0.2mL Tube Adapter, used with E3112-001 (8 pieces/pack)
E3112-004 0.5mL Tube Adapter, used with E3112-001 (8 pieces/pack)
