Description


Product Features
Imported Heavy-Duty Swivel Casters
The equipment is equipped with compact, high-capacity imported heavy-duty swivel casters. The four-wheel design ensures smooth rotation, safe movement, and convenience.

High-Temperature Resistant Sealing
The door and cabinet are sealed with high-tensile, high-temperature resistant sealing strips, ensuring airtightness in the testing area, which guarantees the precision and stability of the testing process.

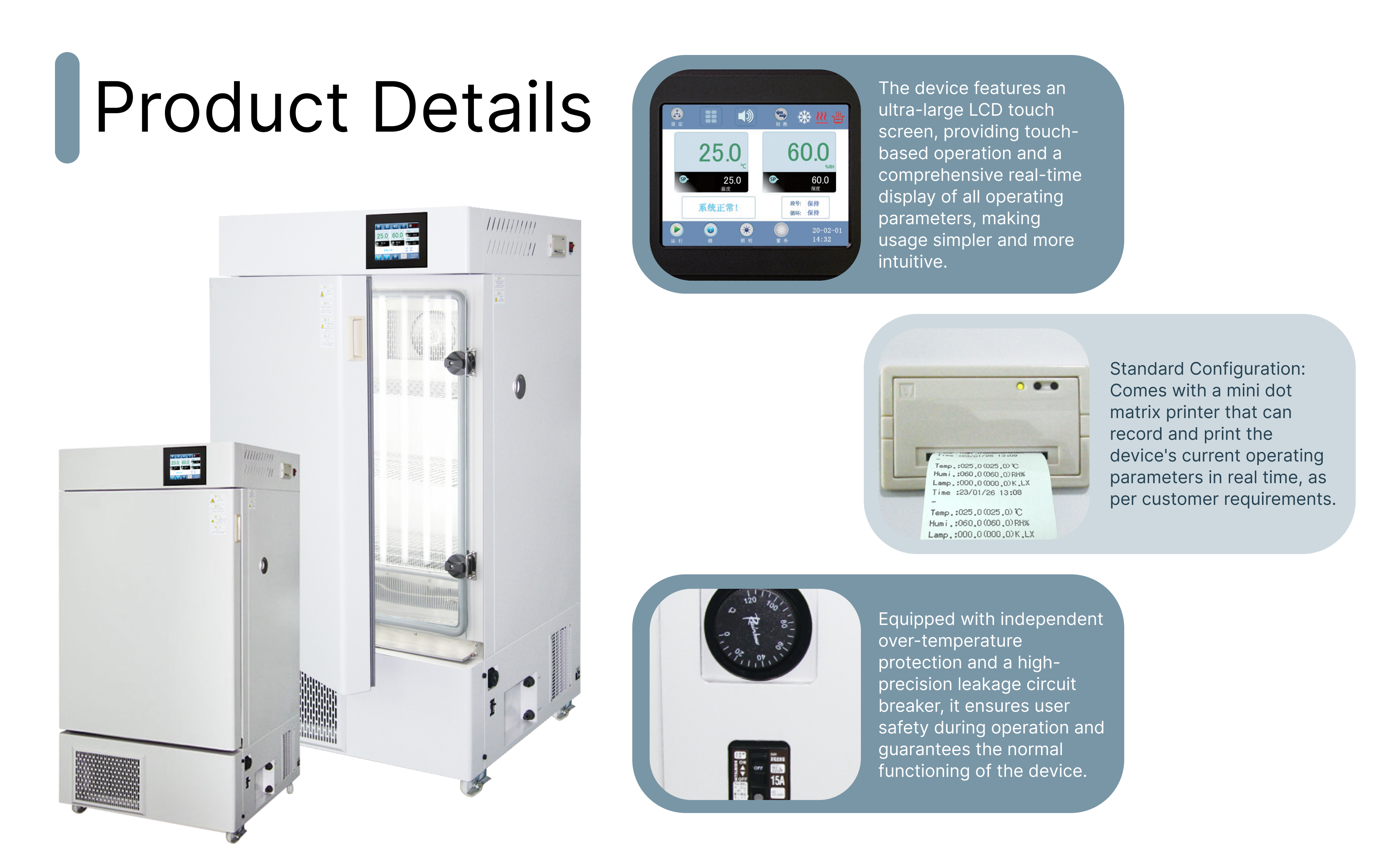

Large LCD Touchscreen for Easy Operation
The device features a large LCD touchscreen that displays all operational parameters in a comprehensive, clear, and organized manner. The touch interface ensures simple and intuitive operation. The system includes a built-in mini dot-matrix printer, which can record and print the device’s current operational parameters in real time, based on customer requirements.

Unique Airflow Structure
The equipment has a unique airflow structure, with an imported fan motor and multi-wing blades that can withstand both high and low temperatures. This design promotes forced convection and vertical diffusion, ensuring uniform air circulation for consistent temperature and humidity distribution.

High-Quality Antibacterial Stainless Steel
The device’s smooth surface is made of high-quality antibacterial stainless steel, with rounded edges for easy cleaning and maintaining a high level of cleanliness.

Large Capacity External Water Tank
The external water tank automatically replenishes the water supply, eliminating the need for frequent manual refills. The water level control uses a mechanical float valve for automatic sensing, which effectively prevents errors that may arise from electronic systems.

Advanced P.1.D Intelligent Control System
The system uses fuzzy P.1.D intelligent control, with a programmable running mode. Temperature and humidity control, as well as power output, are calculated by a microcomputer, ensuring high precision and energy-efficient performance.

Communication and Data Storage Ports
The device includes external RS485 communication interfaces and USB output storage ports, making it easy for users to connect to an external PC for monitoring, data display, and data export/storage (data cannot be altered). This enhances the human-machine interaction and ensures the integrity and traceability of the testing process.

Comprehensive Safety Features
The system is equipped with multiple safety functions, such as leakage protection, independent adjustable temperature safety devices, water supply protection, anti-overflow protection, compressor overpressure protection, cooling fan overheat protection, door alarms, power outage alarms, and sensor alarms to ensure safe operation at all times.

High-Quality Imported Components
The equipment is fitted with an imported brand compressor, German EBM cooling fans, original Finnish VAISALA humidity sensors, and Honeywell PT1000 high-precision three-wire temperature sensors, ensuring high accuracy and reliability.

Frost-Free Intelligent Control System
The frost-free intelligent control system effectively prevents issues such as frost buildup on the evaporator, which can cause temperature and humidity fluctuations during prolonged operation. The system performs automatic defrosting without affecting the stability of the test conditions.

Complies with ICH Guidelines
The device meets the ICH Q1B guidelines for photostability testing of new pharmaceutical ingredients and new formulations. It meets the total illuminance requirement of ≥1.2×10 Lux.hr and the near ultraviolet energy requirement of ≥200w.hr/m².

Complies with 2020 Pharmacopoeia Stability Test Guidelines
The equipment complies with the 2020 edition of the Pharmacopoeia’s guidelines for drug stability testing.

Advanced Features for Monitoring and Analysis
The system supports multi-level permission management, audit trails (event logging), and curve analysis. It can also be optionally equipped with an app and GPRS mobile phone smart alarm system for real-time remote monitoring and alerts.
Product Introduction

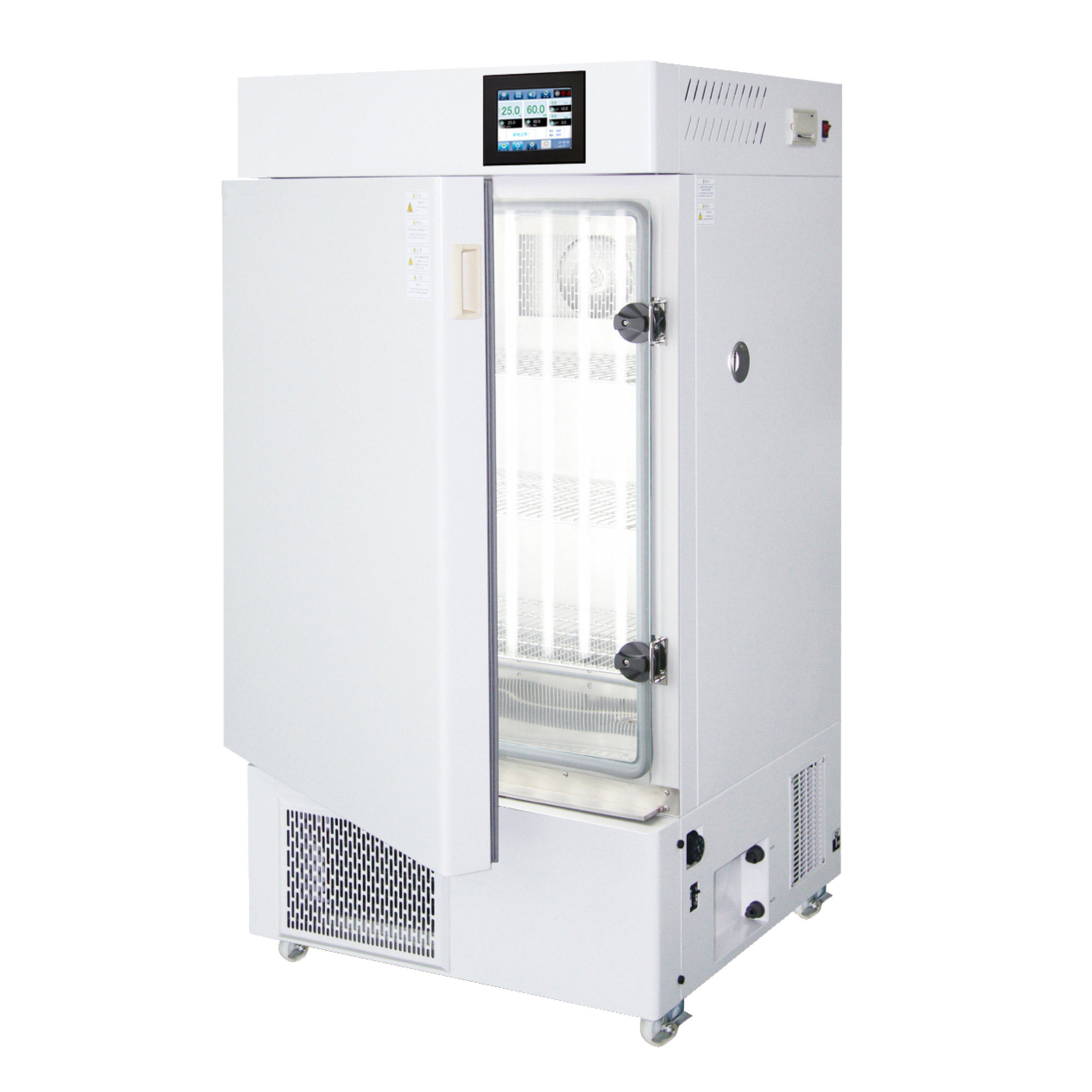

The Pharmaceutical (Photostability) Stability Test Chamber is designed using scientific methods to create a stable temperature, humidity, and light environment required for evaluating the degradation of pharmaceuticals. It is suitable for accelerated testing, long-term testing, high-humidity testing, and intense light exposure testing for both pharmaceutical products and new drugs. This chamber is the best solution for pharmaceutical companies conducting photostability tests on their products.

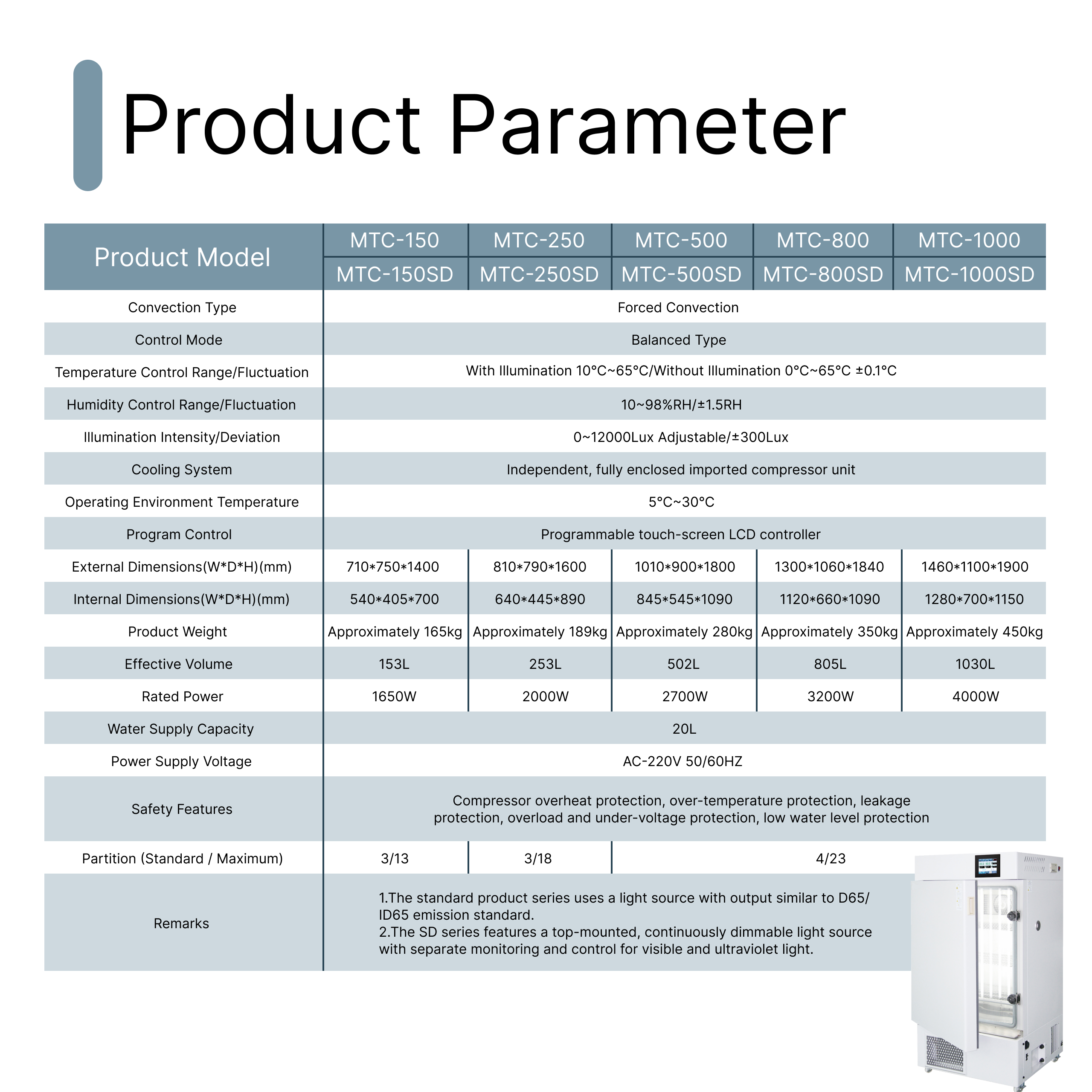

uct Model MTC-150 MTC-250 MTC-500 MTC-800 MTC-1000
MTC-150SD MTC-250SD MTC-500SD MTC-800SD MTC-1000SD
Circulation Mode Strong air circulation
Control Mode Balance type
Temperature Range / Fluctuation With lighting: 10°C–65°C / Without lighting: 0°C–65°C ±0.1°C
Humidity Range / Fluctuation 10–98%RH ±1.5%RH
Light Intensity / Deviation 0–12,000LUX adjustable ±300LUX
Cooling System Independent original imported fully enclosed compressor unit
Working Ambient Temperature 5°C–30°C
Program Control Programmable touch-screen liquid crystal display control panel
Exterior Dimensions (W×D×H) (mm) 710×750×1400 810×790×1600 1010×900×1800 1300×1060×1840 1460×1100×1900
Interior Dimensions (W×D×H) (mm) 540×405×700 640×445×890 845×545×1090 1120×660×1090 1280×700×1150
Product Weight Approx. 165kg Approx. 189kg Approx. 280kg Approx. 350kg Approx. 450kg
Effective Volume 153L 263L 502L 806L 1030L
Rated Power 1650W 2200W 2700W 3200W 4000W
Water Supply Capacity 20L
Power Supply AC 220V 50/60Hz
Safety Features Compressor overcurrent protection, overpressure protection, overheat protection, full alarm protection, underpressure protection
Shelves (Standard/Max) 3,\13 3\ 18 4\23
