Description

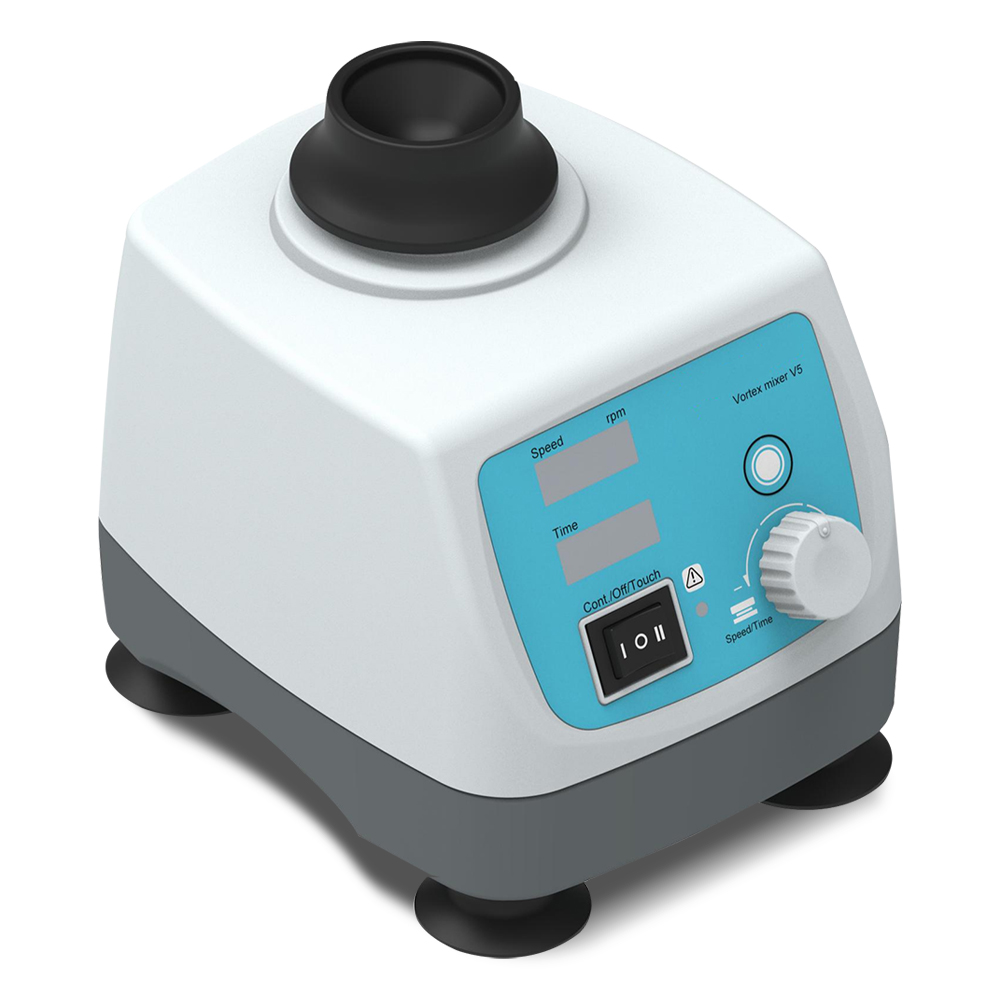

Classic Series V5 Vortex Mixer
The Classic Series vortex mixer is designed for fixed, oscillating, and mixing processes of chemical substances. It is primarily used in research fields such as medicine, bioengineering, chemistry, and pharmaceuticals.

Product Features:
Classic series vortex mixer, suitable for momentary or continuous operation.
Operates at 12V low voltage for experiment safety.
Utilizes a brushless DC motor for reliable and stable performance.
Powerful motor with fast acceleration.
Offers both timed and non-timed operation modes, with easy one-touch switching without the need for complicated time setting adjustments.
No-contact electromagnetic induction triggering for quiet operation with minimal wear.
High speed with large oscillation amplitude, facilitating significant mixing effects with vortex formation.
Low body and center of gravity, equipped with vacuum suction cup feet for exceptional stability during operation.
Perfect dynamic balance design ensures the instrument remains stationary during operation.
Easily interchangeable fixtures and test tube adapters to meet various application needs.
Various fixtures and test tube adapters are available for selection.
Can oscillate test tubes or containers with a diameter of up to 30mm.

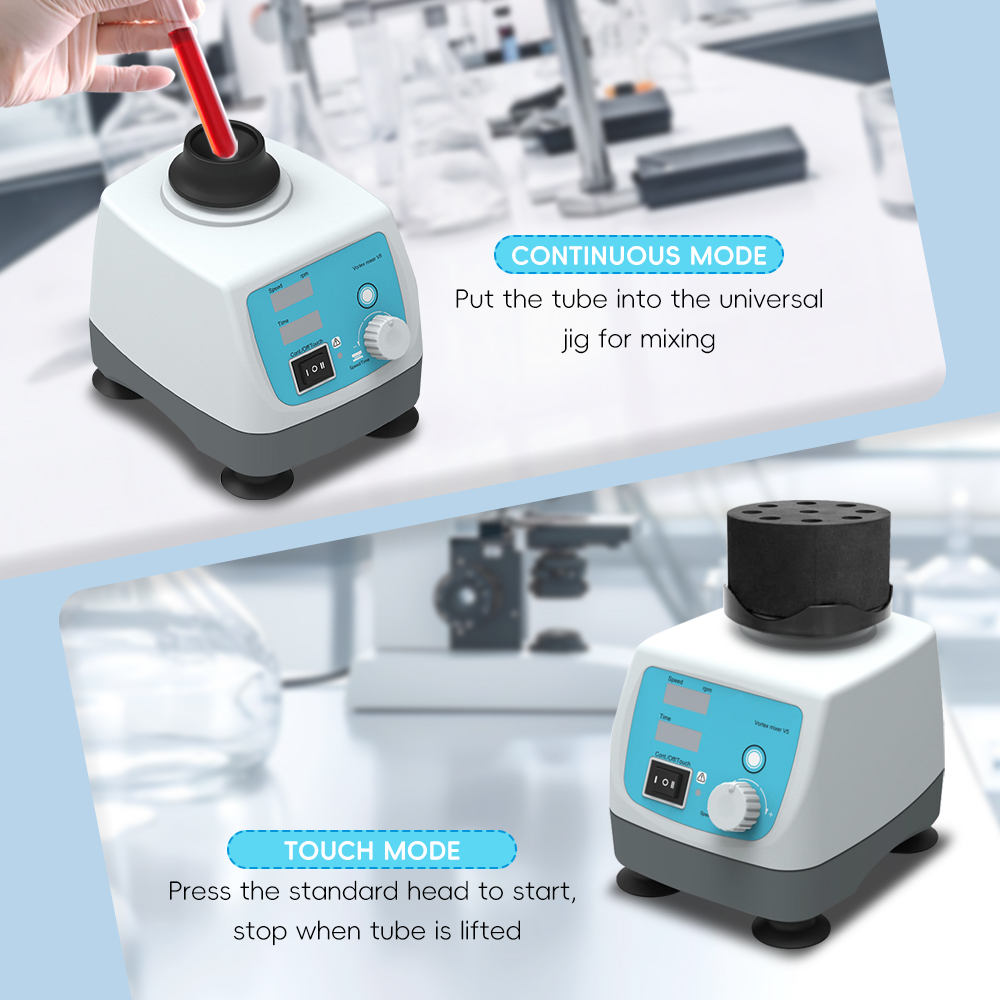

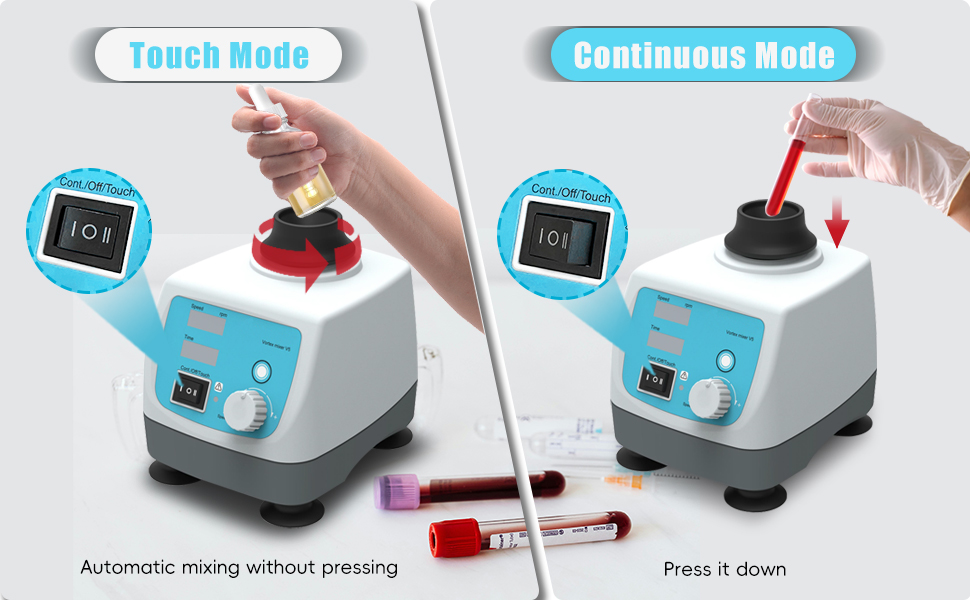

This instrument is suitable for mixing liquid media: momentary mode for oscillating a single test tube, continuous mode for oscillating one or multiple test tubes.

Standard Configuration
Serial Number Name and Specification Quantity
1 V5/V3/V2 Main Unit 1
2 Power Adapter 1
3 Standard Head Fixture (V5-001) 1

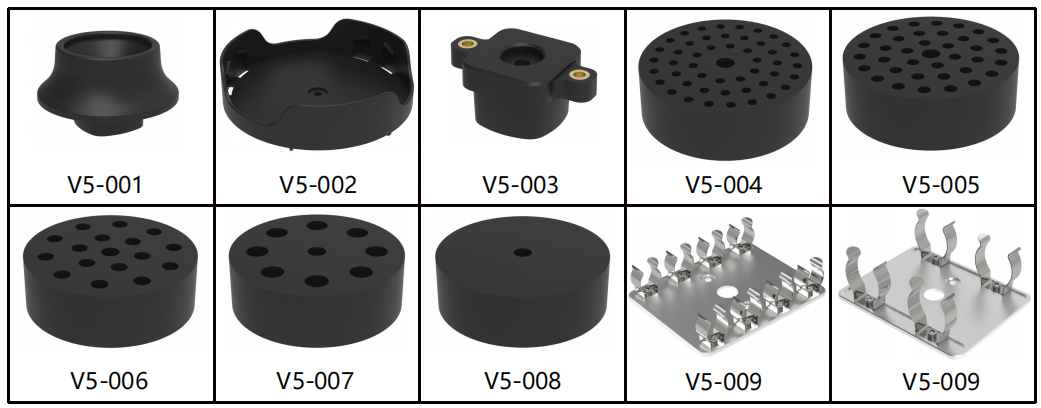

Accessory Selection

Accessory Code Description Speed Range
V5-001 Standard head, for test tubes and small containers with a diameter of less than 30mm Up to 3000rpm
V5-002 Circular tray Up to 1300rpm
V5-003 Test tube clamp tray connector, used with V5-009, V5-010
V5-004 Test tube adapter, for 0.1/0.2ml test tubes (Φ5.0mm hole, 48 holes)
V5-005 Test tube adapter, for 0.5ml test tubes (Φ6.6mm hole, 36 holes)
V5-006 Test tube adapter, for 1.5/2.0ml test tubes (Φ8.8mm hole, 16 holes)
V5-007 Test tube adapter, for 5.0ml test tubes (Φ11.8mm hole, 8 holes)
V5-008 Circular pad, for test tubes or small containers with a diameter less than 83mm
V5-009 Test tube clamp tray, for 4×10/15ml test tubes
V5-010 Test tube clamp tray, for 2x50ml test tubes

Technical Specifications
Parameter V2 V3 V5
Motion Type Approximate circular motion Approximate circular motion Approximate circular motion
Speed Control Non-adjustable Stepless speed control Encoder speed control
Rotation Diameter 4.0mm
Speed Range 3000rpm 0-3000rpm 0-3000rpm
Timing Range None None 00:01-99:59(min:s) or 1-9999min
Speed Display None Scale display LED digital display
Time Display None None LED digital display
Operation Mode Momentary/Continuous operation
Accessories Standard head All All
Max Load Weight 0.4kg
Operating Temperature 5 – 40 ℃
Environmental Humidity (Relative) 80%
Protection Level IP21
Input Power DC12V 1.5A
Output Power 12W
Dimensions (W×D×H)120×145×135mm
Weight 2.6kg
