Description

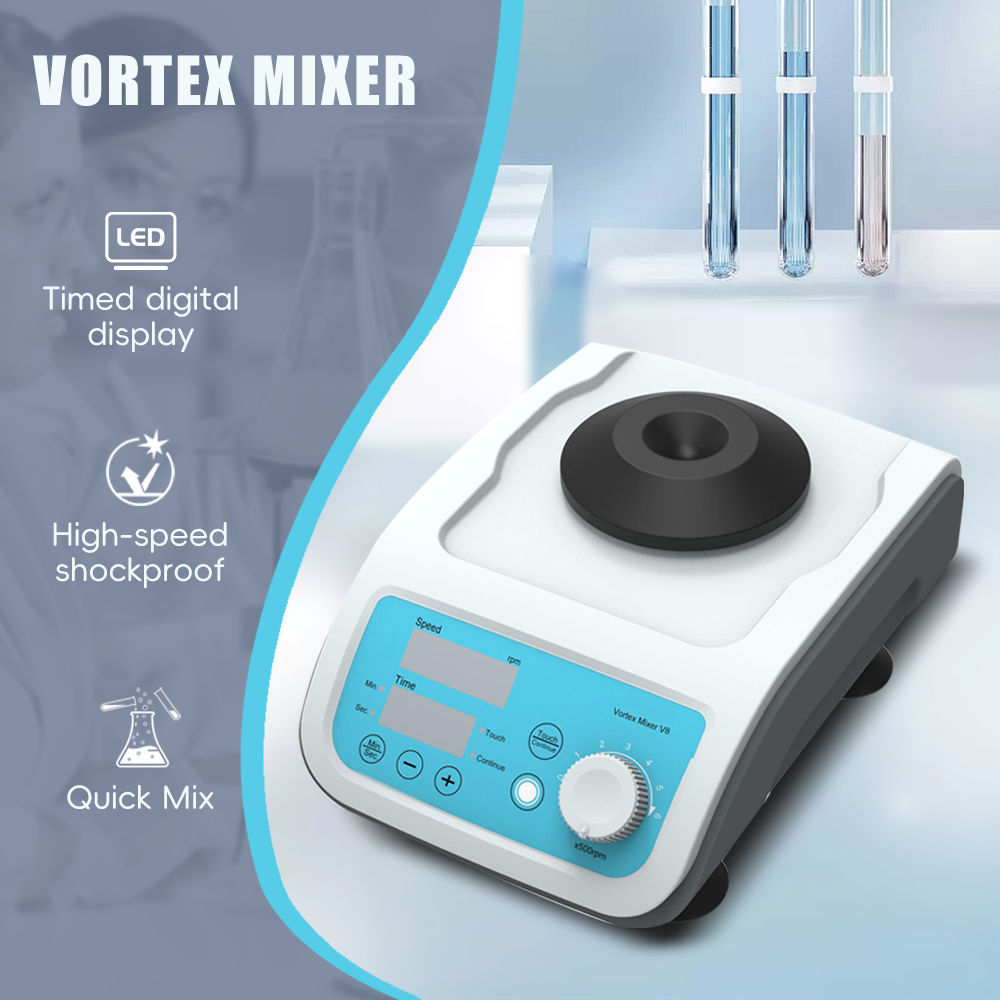

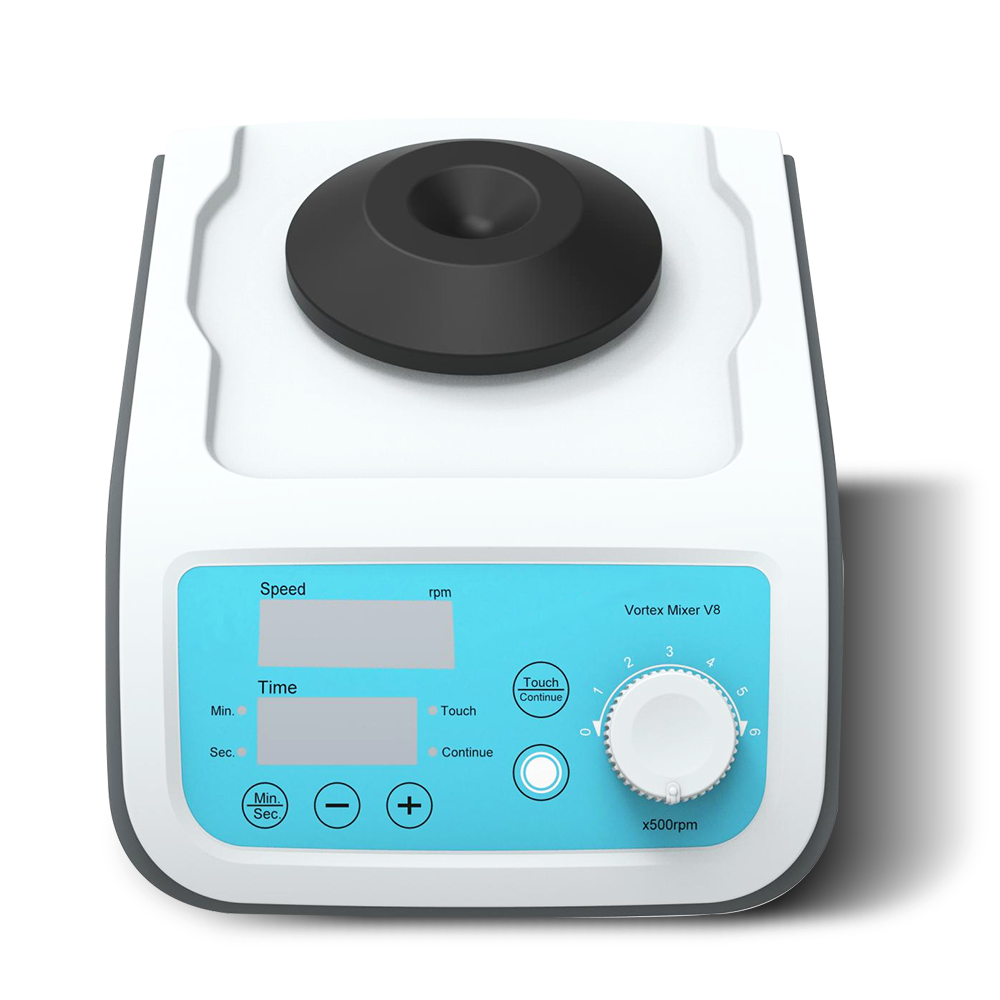

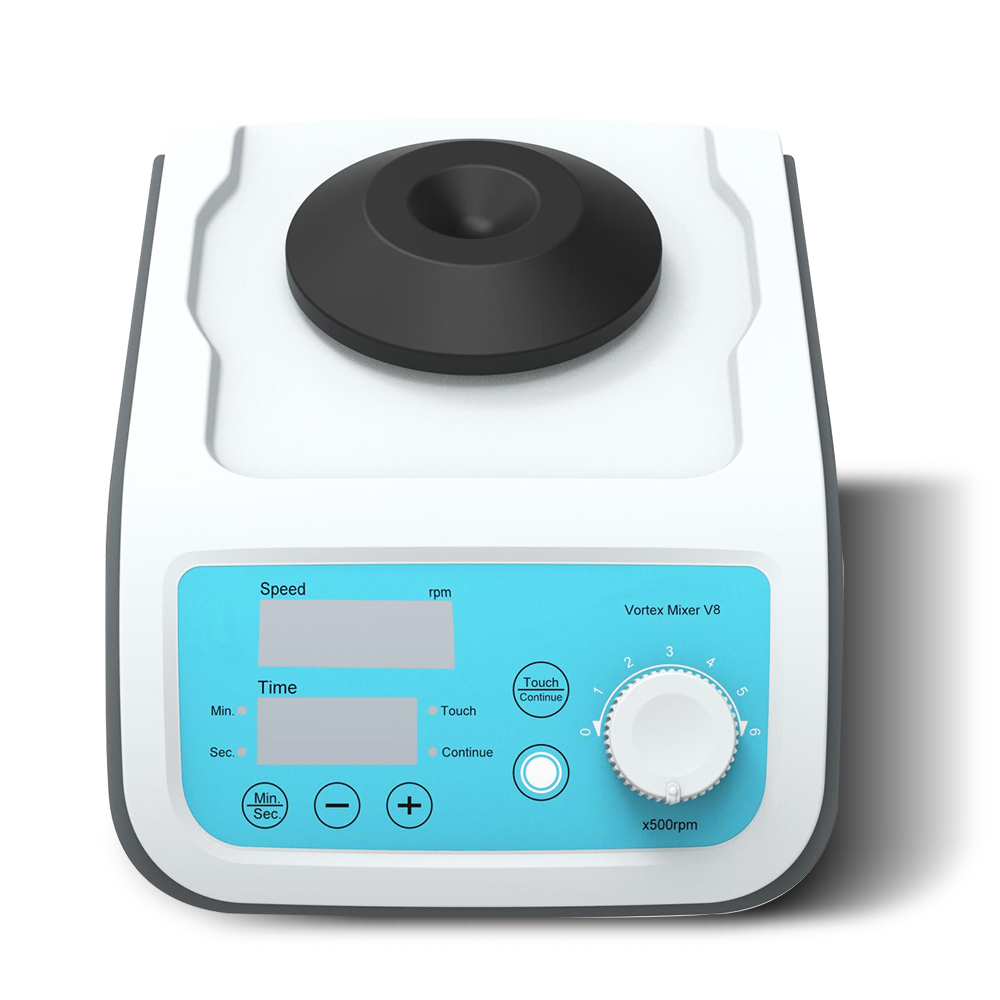

Flagship Series V8 Vortex Mixer
This series of products is the flagship version of vortex mixers, capable of fixing, oscillating, and mixing chemicals, primarily used in medical, bioengineering, chemical, pharmaceutical, and other research fields. It is suitable for oscillating and mixing test tubes, centrifuge tubes, and enzyme plates.

Product Features:
Flagship series vortex mixer, suitable for momentary or long-term continuous operation.
Adjustable speed, with a maximum speed of 3000rpm.
Both timed and non-timed operation modes are available, with one-touch quick switching, eliminating the need for tedious time value adjustments.
Operates at a low voltage of 24V to ensure experiment safety.
Utilizes a brushless DC motor for reliable and stable performance.
Powerful motor with rapid acceleration.
High speed and large oscillation amplitude, facilitating vortex formation in liquids and significantly enhancing mixing effects.

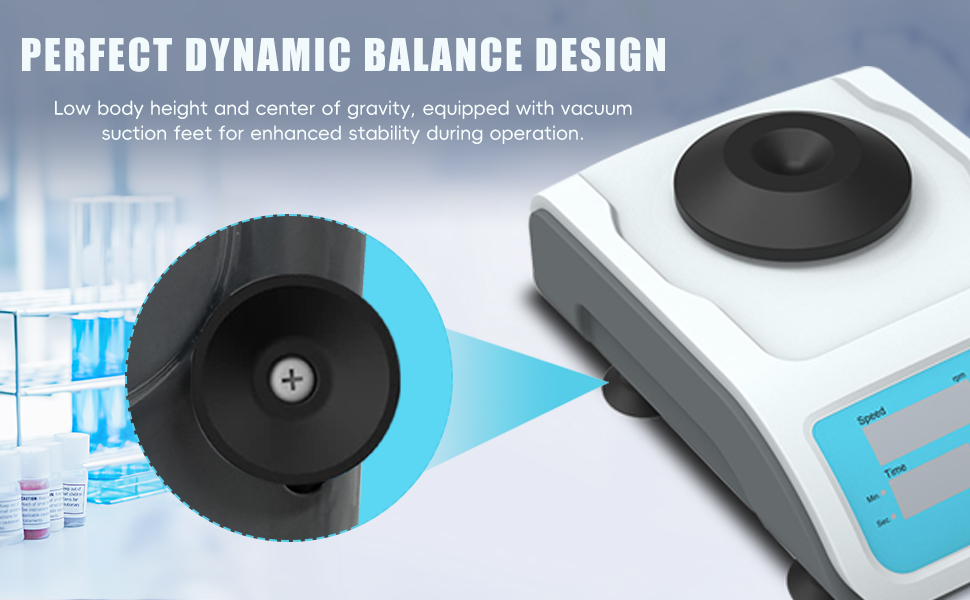

Low body height and center of gravity, equipped with vacuum suction feet for enhanced stability during operation.
Perfect dynamic balance design ensures no movement during operation.

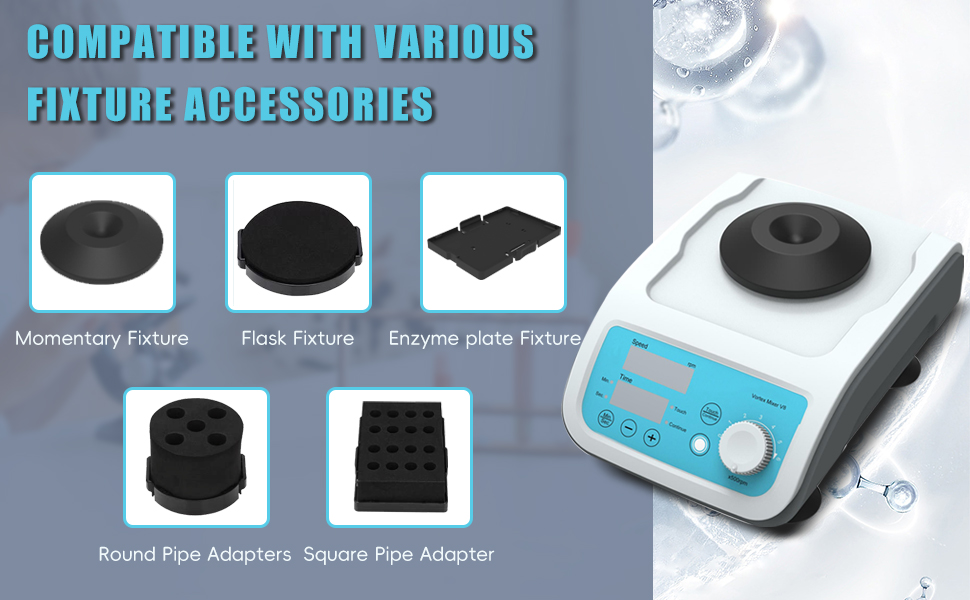

Easy interchangeability of fixtures and test tube adapters to meet various application needs.
Multiple fixture and test tube adapter options available.

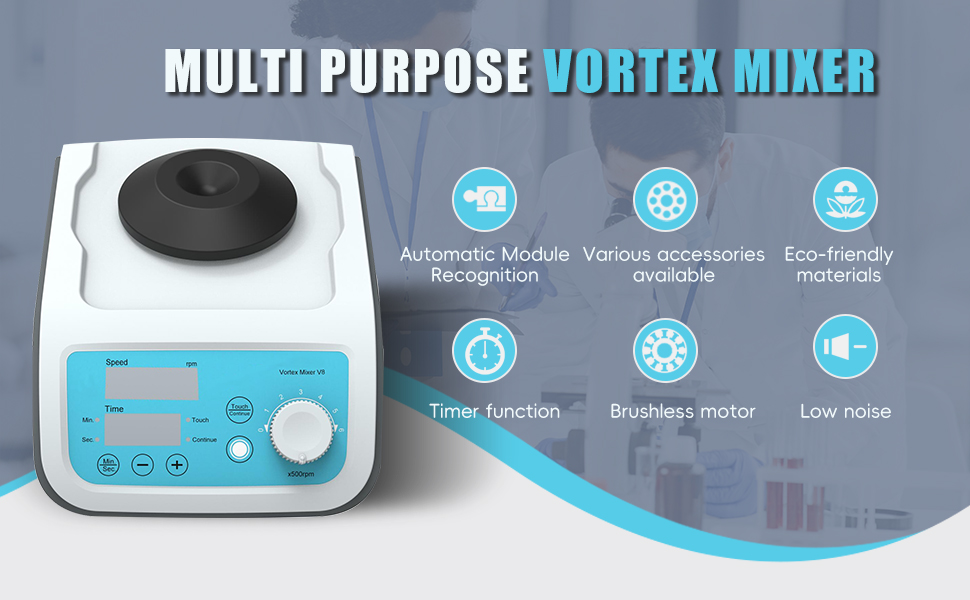

All fixtures are automatically recognized, with automatic speed limitation for safety and reliability, making operation simple and convenient.
Guided rail-type operation structure design ensures standard circular oscillation without lateral shaking, guaranteeing consistency in oscillation for all sample positions.

Standard Configuration
Serial Number Name and Specification Quantity
1 V8 or V7 or V6 Main Unit 1
2 Power Adapter 1
3 Momentary Fixture, Flask Fixture, Flask Circular Pad 1 each
4 Enzyme Plate Fixture, 96-Well Plate Tube Adapter 1 each

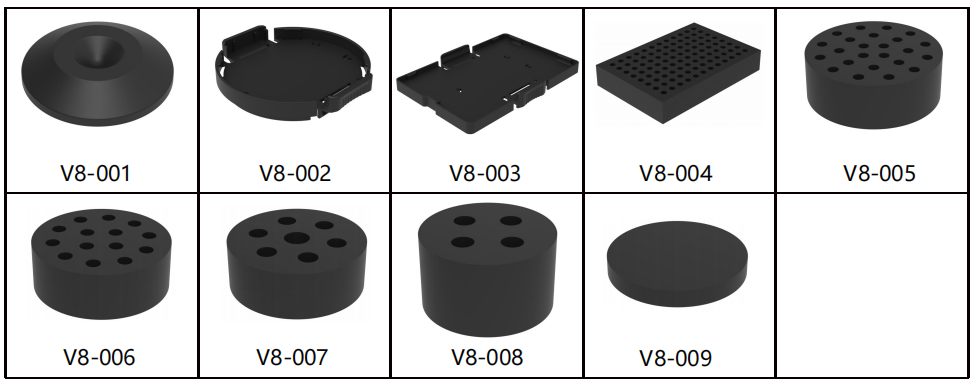

Accessory Selection

Accessory Code Description Speed Range
V8-001 Momentary fixture, for tubes and small containers with a diameter less than 30mm. Maximum speed: 3000rpm Up to 3000rpm
V8-002 Flask fixture Up to 1300rpm
V8-003 Enzyme plate fixture
V8-004 Tube adapter, used with V8-003, suitable for 0.2ml PCR tubes, PCR rows, and 96-well PCR plates, hole diameter Φ5.0mm×96.
V8-005 Tube adapter, used with V8-002, for 0.5ml tubes, hole diameter Φ6.6mm×24.
V8-006 Tube adapter, used with V8-002, for 1.5/2.0ml tubes, hole diameter Φ8.8mm×14.
V8-007 Tube adapter, used with V8-002, for 5.0ml tubes, hole diameter Φ12mm×6.
V8-008 Tube adapter, used with V8-002, for 10/15ml tubes, hole diameter Φ14mm×4.
V8-009 Flask circular pad, used with V8-002, for tubes or small containers with a diameter less than 65mm. Maximum speed: 3000rpm Up to 3000rpm

Technical Specifications

Parameter V6 V7 V8
Movement Type Guide rail circular motion
Speed Control Type Stepless speed control Encoder speed control Encoder speed control
Turntable Diameter 4.5mm
Speed Range 0-3000rpm
Timing Range None 1-999s or 1-999min 1-999s or 1-999min
Speed Display Gradation display Gradation display LED digital display
Time Display None LED digital display LED digital display
Operating Mode Momentary/Continuous
Compatible Accessories All
Maximum Load Weight 0.5kg
Operating Temperature 5 – 40 ℃
Ambient Humidity 80%
Protection Level IP21
Input Power DC24V 1.0A
Output Power 15W

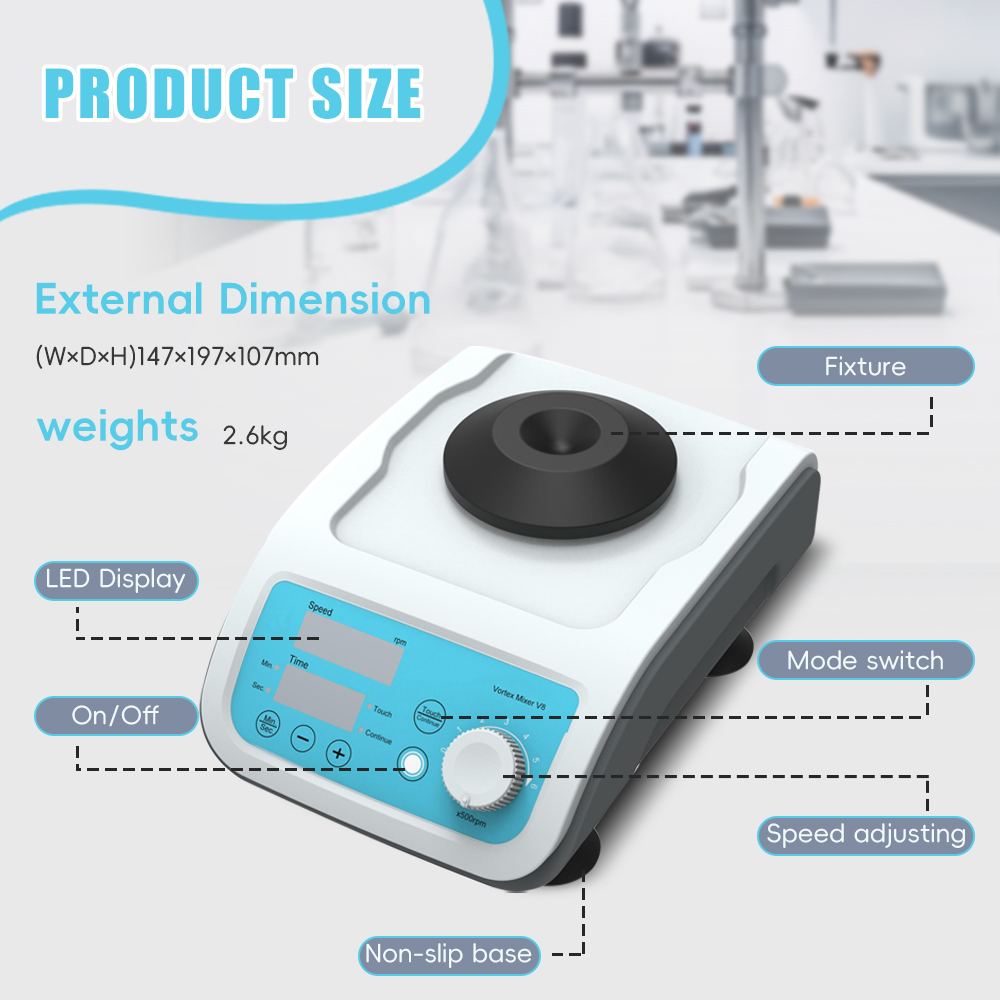

Dimensions 147×197×107mm
Weight 2.6kg
