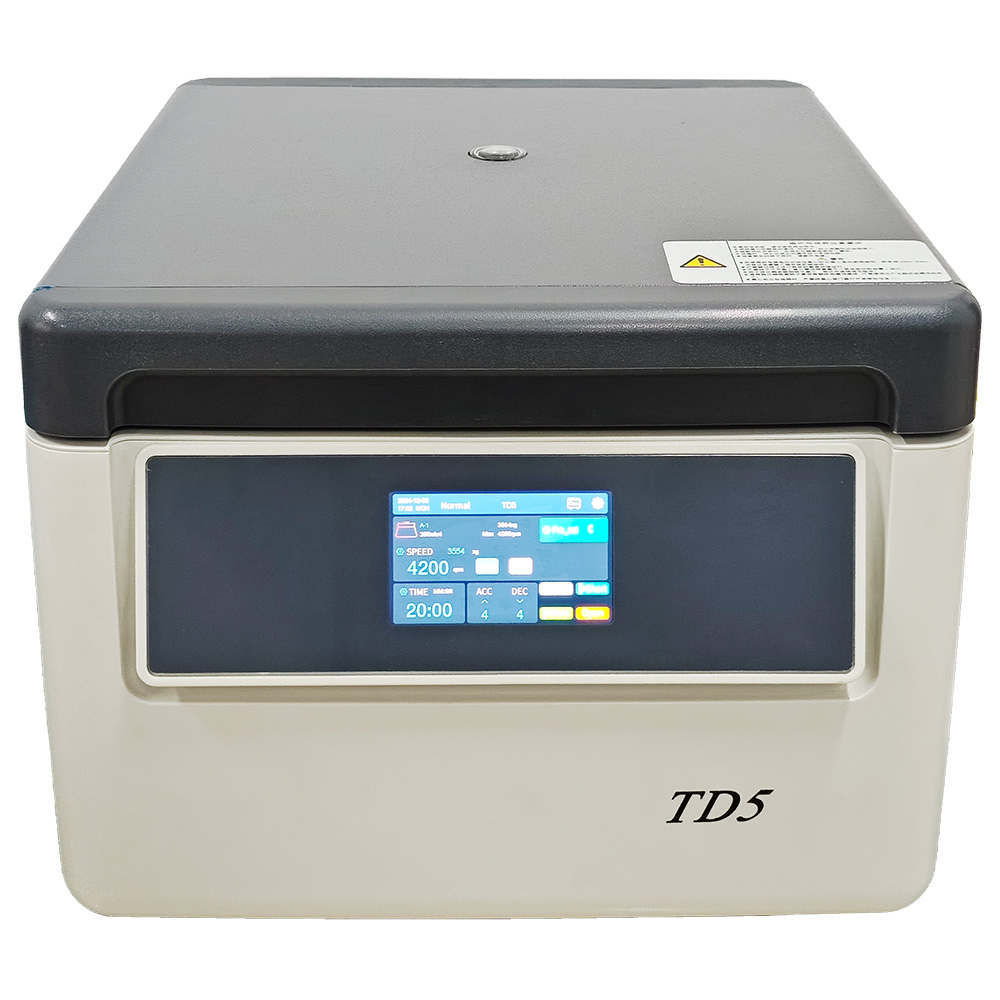

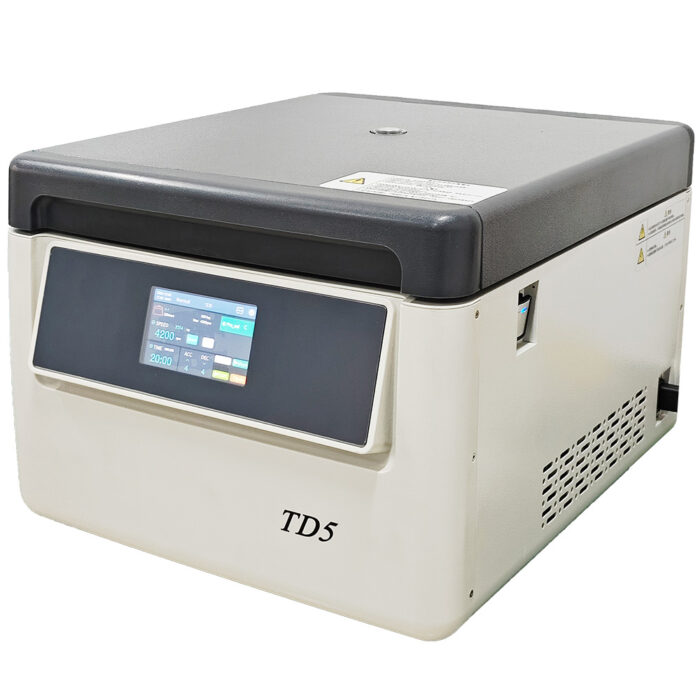

TD5 Tabletop Low Speed Centrifuge
TD5 Tabletop Low Speed Centrifuge is mainly used for the separation and purification of clinical medicine, biopharmaceuticals, and blood products. It is a preferred centrifugal separation instrument for the fields of medical and health services, food, environmental protection, scientific research, teaching, and etc.
Features:
- General purpose capacityformedium-throughput laboratories
- DC brushless motor, microcomputer control
- High strength stainless steel centrifugal chamber, sturdy and safe
- Rotor automatic balance achievedbythe unique two-stage damping device
- Stainless steel swingrotor bodyand tube racks
- Various capacityandeasy to replace rotors provide a great flexibility
- Simultaneously displays theparametersof settings and real-time
- Multiple languages available, default English

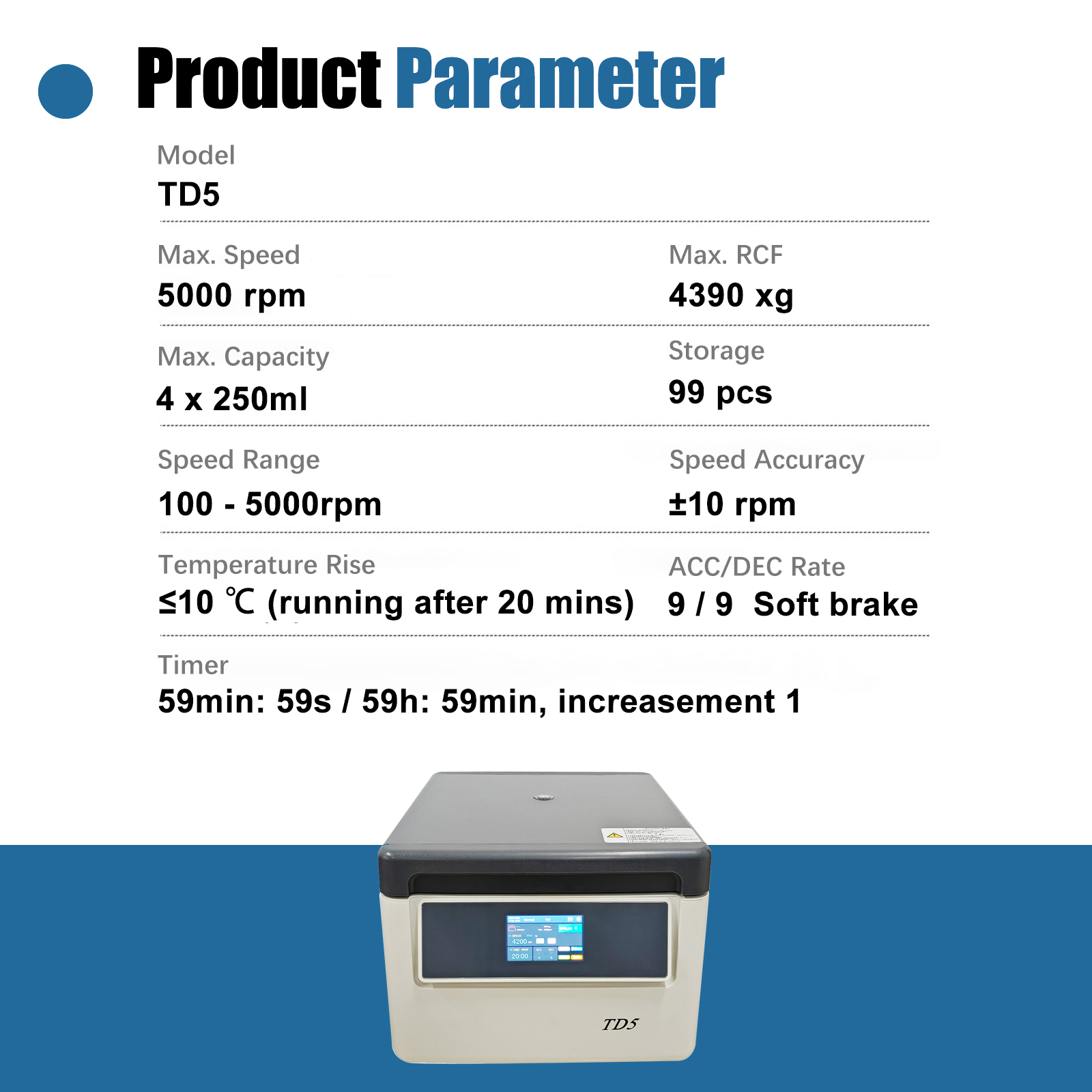

Main Parameters:
Model | TD5 |
Order No. | 108050 |
Max. Speed | 5000 rpm |
Max. RCF | 4390 xg |
Max. Capacity | 4 x 250ml |
Speed Range | 100 – 5000rpm |
Speed Accuracy | ±10 rpm |
Temperature Rise | ≤10 ℃ (running after 20 mins) |
Timer | 59min: 59s / 59h: 59min, increasement 1 |
ACC/DEC Rate | 9 / 9 Soft brake |
Storage | 99 pcs |

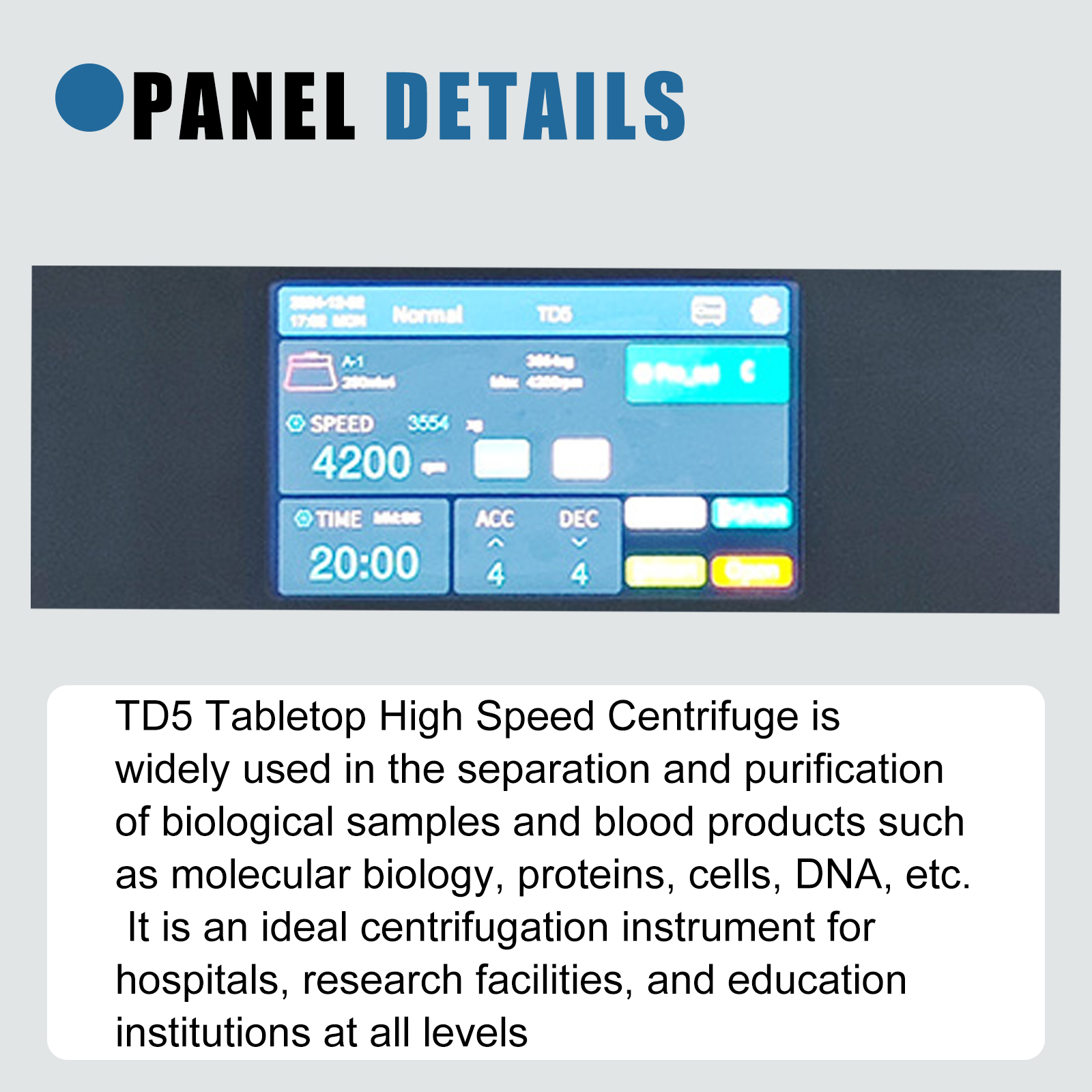

Screen | 5-inch color LCD touch screen |
Noise Level | ≤65 dB (A) |
Safety Devices | Door interlock, overspeed detection, imbalance detection,
over-temperature detection |
Drive Motor | DC Brushless Motor |
Power Supply | AC 220V ±10%, 50Hz, 5A |
Total Power | 500 W |
Dimensions | 550 x 460 x 370 mm (L x W x H) |
Net Weight | 35 kg |
TD5 Rotor List:
No. | Name | Order No. | Capacity | Max Speed
(rpm) |
Max. RCF
(x g) |
Adapters |
No.1 | Angle Rotor | 72212001 | 12 x 15ml | 5000 | 3555 | 10ml,
vacutainer 2ml,5ml |
No.2 | Swing Rotor | 72816001
/ 72816002 |
16 x 10/15ml | 4000 | 2810 | 5ml |
No.3 | Swing Rotor | 72924001
/ 72924002 |
24 x 10/15ml | 4000 | 2810 | 5ml |
No.4 | Swing Rotor | 73032001
/ 73032002 |
32 x 10/15ml | 4000 | 2810 | 5ml |
No.5 | Swing Rotor | 73104001 | 4 x 50ml | 5000 | 4390 | 10ml, 15ml,
vacutainer 2ml,5ml |
No.6 | Swing Rotor | 73306001 | 6 x 50ml | 5000 | 4000 | 10ml, 15ml,
vacutainer 2ml,5ml |
No.7 | Swing Rotor | 73408001
/ 73408002 |
8 x 50ml/100ml | 4000 | 2810 | 10ml, 15ml,
vacutainer 2ml,5ml |
No.8 | Swing Rotor | 73504001 | 4 x 100ml | 4000 | 3000 | 10ml, 15ml, 50ml,
vacutainer 2ml,5ml |
No.9 | Swing Rotor | 73604001 | 4 x 250ml | 4000 | 3130 | 10ml, 15ml, 50ml,
vacutainer 2ml,5ml |
No.10 | Swing Rotor | 73948001 | 2 x 2 x 48wells | 4000 | 1700 | *** |
No.11 | Swing Rotor | 74096001 | 2 x 2 x 96wells | 4000 | 2200 | *** |
No.12 | Swing Rotor | 74148001 | 48 x 2~7ml | 4000 | 2810 | vacutainer |
No.13 | Swing Rotor | 74264001 | 64 x 5ml | 4000 | 2810 | vacutainer |
