TGL20 Tabletop High Speed Refrigerated Centrifuge
TGL20 Tabletop High Speed Refrigerated Centrifuge is widely used in the separation and purification of biological samples and blood products such as molecular biology, proteins, cells, DNA, etc. It is an ideal centrifugation instrument for hospitals, research facilities, and education institutions at all levels.
Features:
- Maxspeed 20000rpm,maximum 400ml samples can be separated at once
- DC brushless motor, microcomputer control
- High strength stainless steel centrifugal chamber, sturdy and safe
- Standby cooling function can be turned off, savingenergy
- All rotors can maintain 4℃or below at their maximum speed
- *Automatic rotor recognition to avoid misoperation
- Multiple rotor options forvarious application needs

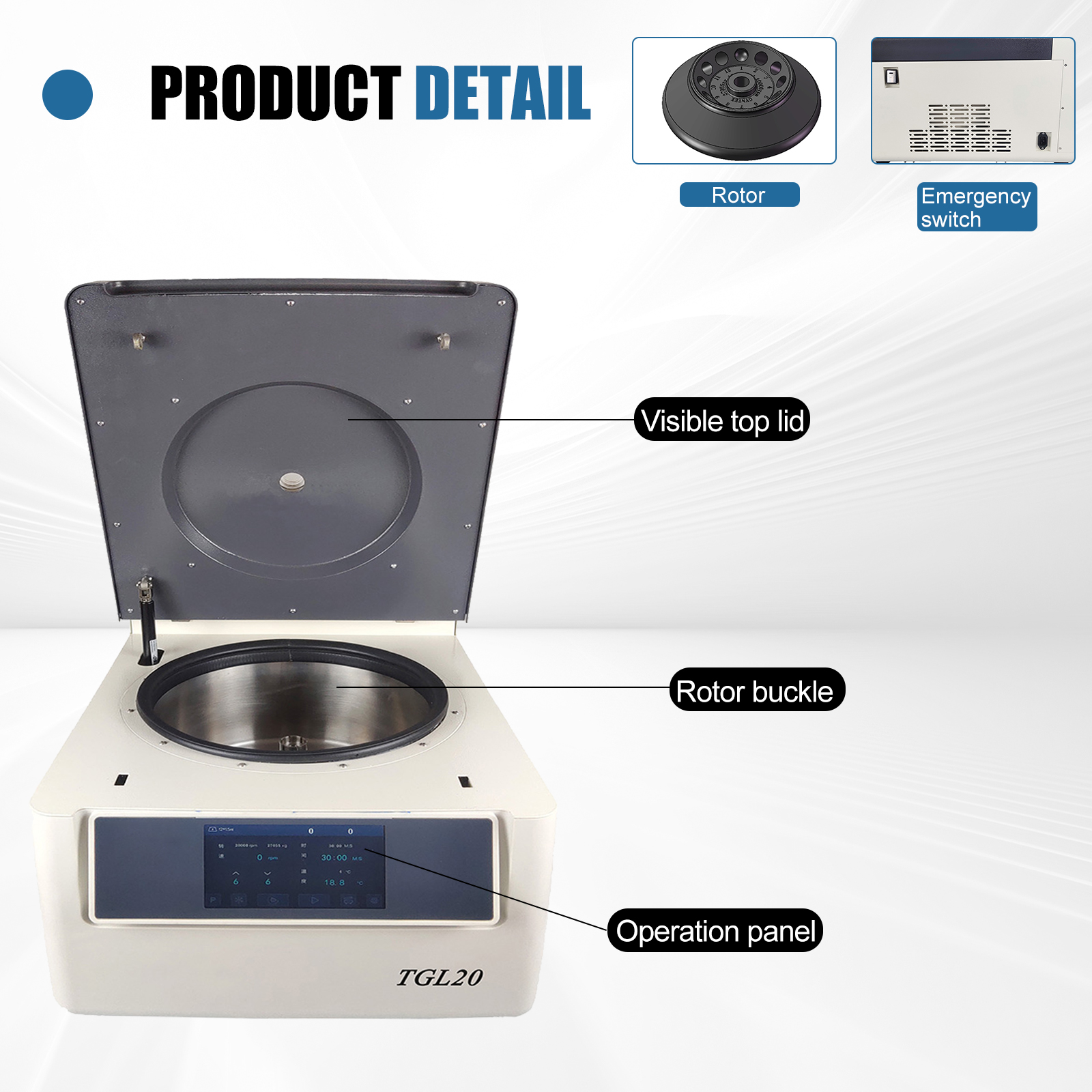

- Simple rotor placement and self-locking system
- Airtight rotor, effectively preventing aerosol and liquid leakage
- Aviation aluminum forged rotorswithhigh safety and long service life
- Simultaneously displays the settings and real-time parameters
- Multiple languages available, default English
- Able to make simple editing for each program in customized mode
- *USB interface is optional to use

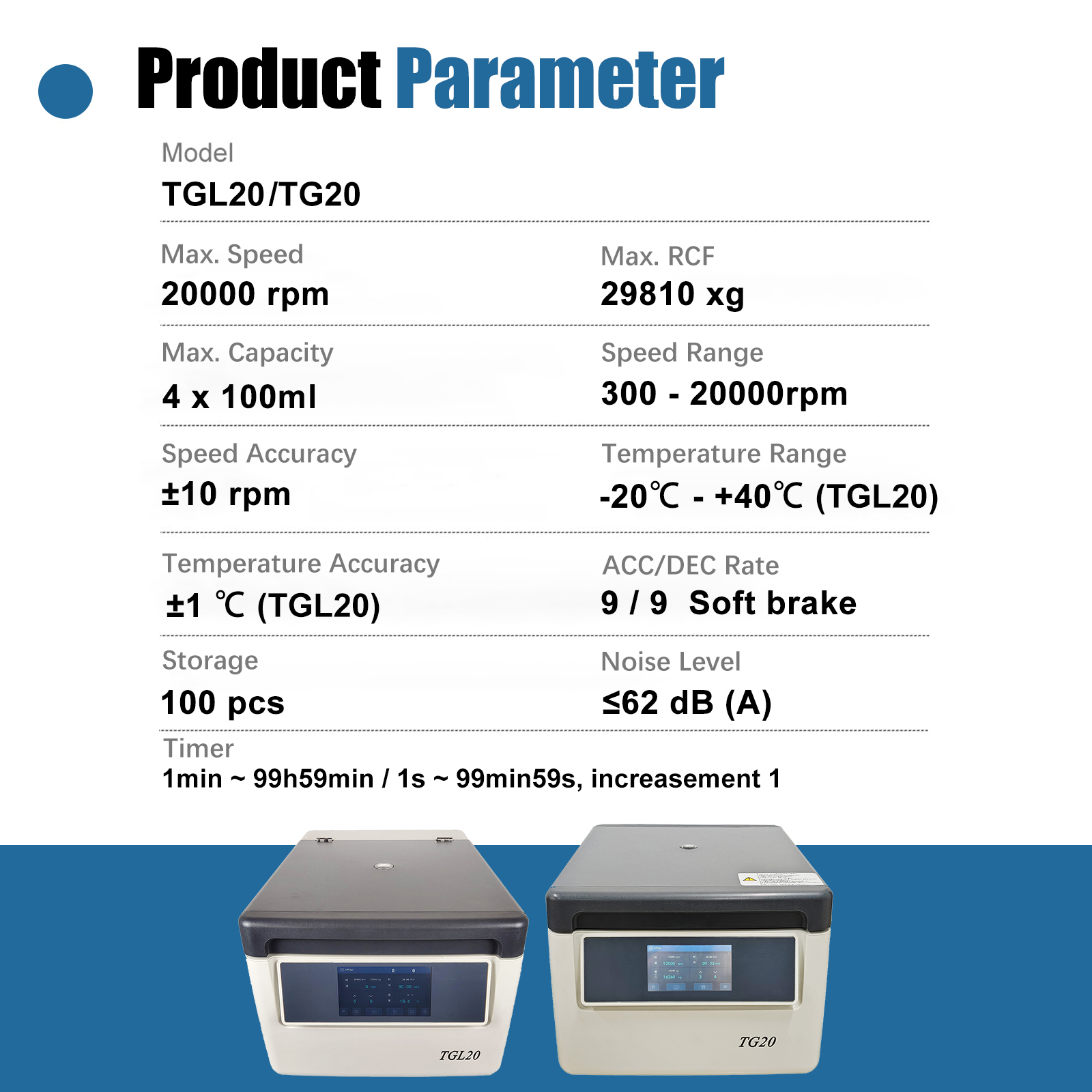

Main Parameters:
| Model | TGL20 |
| Max. Speed | 20000 rpm |
| Max. RCF | 29810 xg |
| Max. Capacity | 4 x 100ml |
| Speed Range | 300 – 20000rpm |
| Speed Accuracy | ±10 rpm |
| Temperature Range | -20℃ – +40℃ |
| Temperature Accuracy | ±1 ℃ |
| Timer | 1min ~ 99h59min / 1s ~ 99min59s, increasement 1 |
| ACC/DEC Rate | 9 / 9 Soft brake |
| Storage | 100 pcs |

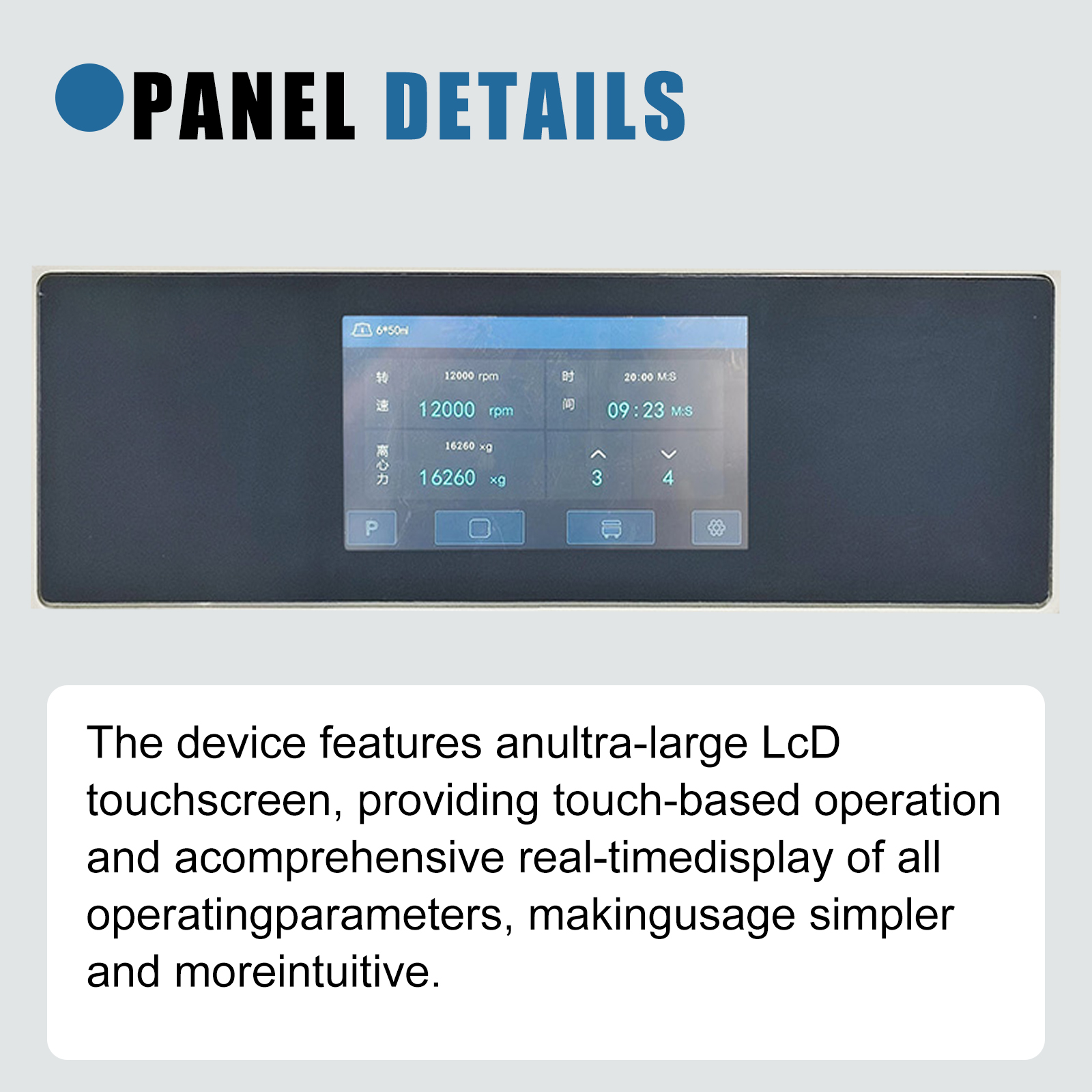

| Screen | 7-inch color LCD touch screen |
| Noise Level | ≤62 dB (A) |
| Safety Devices | Door interlock, overspeed detection, imbalance detection,
over-temperature detection |
| Drive Motor | DC Brushless Motor |
| Refrigerator | High performance compressor (Refrigerant: R134A) |
| Power Supply | AC 220V ±10%, 50Hz, 10A |
| Total Power | 900 W |
| Dimensions | 650 x 460 x 370 mm (L x W x H) |
| Net Weight | 60 kg |
| Auto rotor recognition | Optional |
| USB Interface | Optional |
TGL20 Rotor List:
| Name | Capacity | Max Speed (rpm) | Max. RCF(x g) | Adapters | |
| No.1 | Angle Rotor | 12 x 1.5ml | 20000 | 27055 | 0.2ml, 0.5ml |
| No.2 | Angle Rotor | 24 x 1.5ml | 17500 | 28418 | 0.2ml, 0.5ml |
| No.3 | Angle Rotor | 48 x 1.5ml | 13000 | 18516 | 0.2ml, 0.5ml |
| No.4 | Angle Rotor | 12 x 5ml | 20000 | 29810 | 2ml |
| No.5 | Angle Rotor | 12 x 10ml | 16000 | 22945 | 5ml |
| No.6 | Angle Rotor | 8 x 15ml | 12000 | 16582 | 5ml |
| No.7 | Angle Rotor | 12 x 15ml conical | 12500 | 18866 | 5ml conical |
| No.8 | Angle Rotor | 6 x 50ml conical | 12000 | 16260 | 15ml conical |
| No.9 | Angle Rotor | 6 x 50ml | 14000 | 20805 | 5ml, 10ml, 15ml |
| No.10 | Angle Rotor | 4 x 100ml | 10000 | 11599 | 5ml, 10ml, 15ml, 50ml |
| No.11 | Swing Rotor | 4 x 100ml | 4500 | 3056 | 15ml, 50ml, 4x3x10ml, vacutainer 2ml,5ml |
